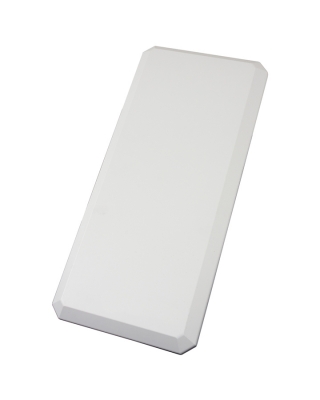

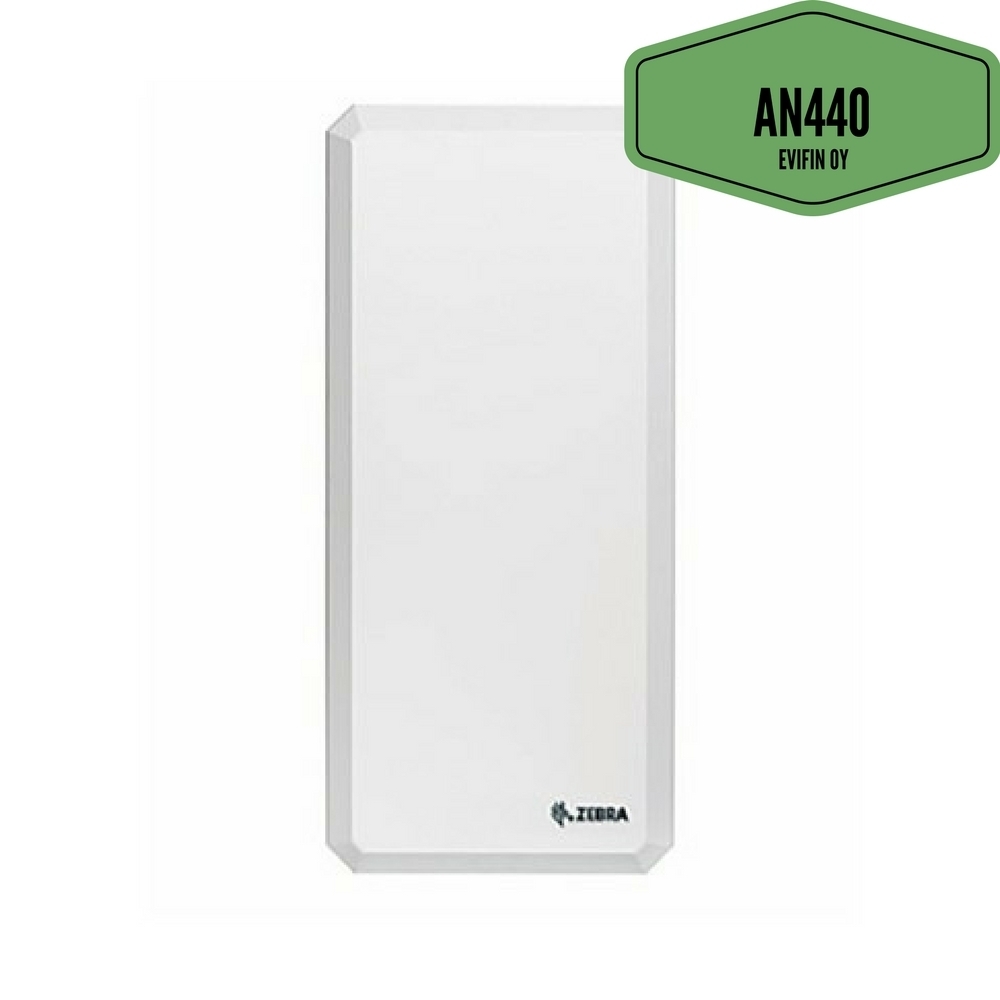

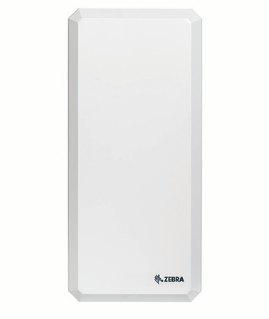

Zebra AN440 RFID Antenna
The AN440 has a rugged white housing that is easy to mount and equally at home in both customer-facing and industrial settings.

    • Dual-element, ideal for bi-static operation
    • Can be used as two separate mono-static antennas in one package
    • Rugged design suitable for industrial applications
    • Aesthetically pleasing, low-profile for customer facing installations
  • Performance Characteristics

    10 W

    Voltage Standing Wave Ratio (VSWR)
    <1.4 : 1

    Front to back ratio
    20 dB

    DC resistance
    DC Grounded

    Axial ratio
    1dB typical

    3 dB beam width
    70° in both phases

    6.0 dBi linear

    Physical Characteristics

    Dimensions (HxWxD)
    22.6 inches L x 10.2 inches W x 1.32 inches D (575.1 mm L x 259.1 mm W x 33.52 mm D)

    1 x LHCP / 1 x RHCP

    Type "N" Female

    Mounting bracket
    Integrated mounting holes

    Connector position

    UV Stable ASA

    4.2 lbs / 1.9 kg

    User Environment

    Environmental sealing

    Storage temperature
    -40°F to +185°F

    Operating temperature
    -22°F to +158°F

    Environmental sealing

    Random vibration test
    IEC-68-2-6 (10 to 150 Hz, 05 g, 1 hour in each of two axes) (Random Vibration)

    Humidity test
    MIL-Std 810G, METHOD 507.5, Procedure II - Aggravated

    RoHS compliant

  • Healthcare icon Zebra AN440 RFID Antenna can be used in Health care Industry
    Retails icon Zebra AN440 RFID Antenna can be used on Retail Stores
    Logistics icon Zebra AN440 RFID Antenna Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses Zebra AN440 RFID Antenna
    Government icon Zebra AN440 RFID Antenna used in various Government Sectors
    Travel & Leisure icon Zebra AN440 RFID Antenna for Travel & Leisure
    Special Materials icon Zebra AN440 RFID Antenna for Special Materials
