AP362 Label Applicator in Vikas Puri
AP362 Label Applicator AP362 Label Applicator AP362 Label Applicator

AP362 Label Applicator

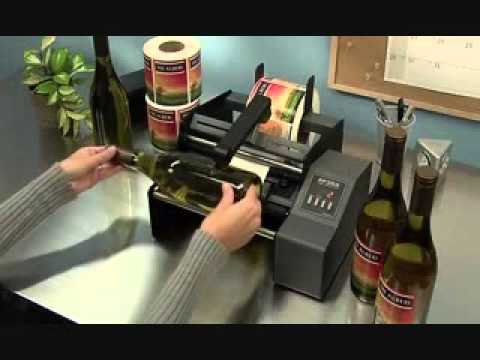

Primera’s AP-Series Label Applicators are the perfect semi-automatic labeling solution for cylindrical containers as well as many tapered containers, including bottles, cans, jars and tubes.

Set-up and operation is fast and easy. Just:

  1. Set the guides
  2. Place your container in the machine
  3. Press the footswitch and your label is applied

The built-in spring-loaded pressure arm makes sure labels are applied firmly and without wrinkles.

With an AP-Series Label Applicator you’ll apply labels faster and more accurately – helping to speed up your production and sell more of your products!

  • Apply Label Quickly and Accurately
    With an AP-Series Label Applicator you’ll be able to apply labels at speeds of up to 1200 per hour. Labels are perfectly applied without wrinkles, giving your finished products a highly professional look.

    AP-Series Label Applicators are an ideal accessory to Primera’s LX- or CX-Series label printers. The applicators can also apply roll-fed, pressure-sensitive labels produced by most other flexographic, offset and digital presses.

    AP360 is the base model. It quickly and efficiently applies single labels at a time.

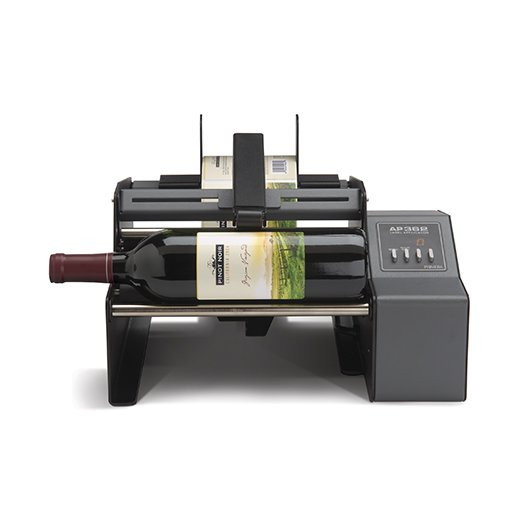

    AP362 is an advanced model. It can apply one or two different labels to a single container. A built-in LED counter and memory for up to nine front-to-back label offsets is also included.

    Features:

    Quick set-up and easy operation

    • Accurately applies labels to the front (AP360) or front and back (AP362) with variable spacing
    • Fast – labels are applied at 5.3” (135mm) per second – up to 1200 containers per hour
    • Compact size – fits on most desks and countertops
    • Professionally designed – one of the only semi-automatic label applicators available with UL, CSA and FCC safety and emissions certifications
    • Industrial strength – built with heavy-duty sheet metal and steel for long life
  • Container Width:

    1” to 9.4” (25.4mm to 238mm)

    Container Diameter:

    0.6” to 6.7” (15mm to 170mm)

    Container Shape:

    Cylindrical and many tapered

    Supply roll diameter:

    Up to 8” (203mm)

    Media liner width:

    1” to 8.375” (25.4mm to 213mm)

    Supply roll core:

    2” to 3” I.D. (51.8mm to 76.2mm)

    Electrical rating:

    12VDC, 5.0A

    Power requirements:

    100-240VAC, 50/60 Hz, 60 watts

    Agency certifications:

    UL, UL-C, CE, FCC Class A

    Weight:

    16 lbs. (7.26 kg)

    Dimensions:

    13.4”W x 8.9”H x 12.9”D (340mmW x 226mmH  x 328mmD)

    Gap between Labels:

    Recommended: 1/8" - 1/4" ( 3.175 mm - 6.3500 mm )

    Label Type:

    Die cut with waste removed.  Clear labels can be used.

    Liner Thickness:

    2 mil - 10mil (smoothness will affect feeding - a liner that is too slippery or too thin will slip through the drive rollers)

    Label + Adhesive Thickness:

    5 mil - 15 mil*

    • Health careAP362 Label Applicator can be used in Health care Industry
    • RetailsAP362 Label Applicator can be used on Retail Stores
    • LogisticsAP362 Label Applicator Mostly used in Logistics Industry for Asset Management and Tracking
    • ManufacturingManufacturing Industry uses AP362 Label Applicator
    • GovernmentAP362 Label Applicator used in various Government Sectors
    • Travel & LeisureAP362 Label Applicator for Travel & Leisure
    • Special MaterialsAP362 Label Applicator for Special Materials
