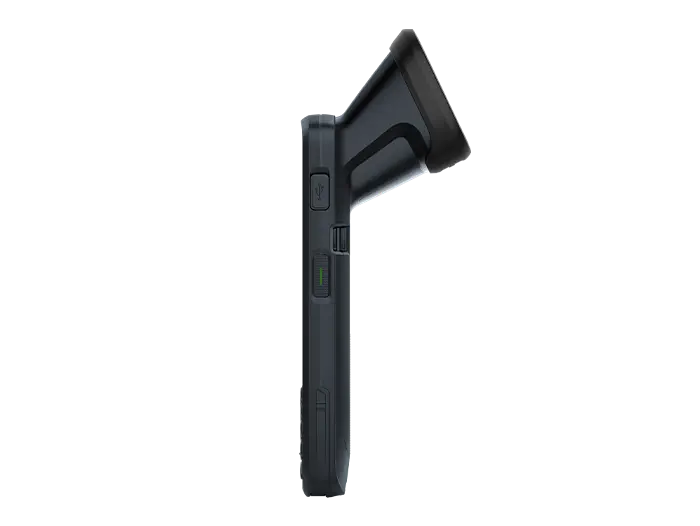

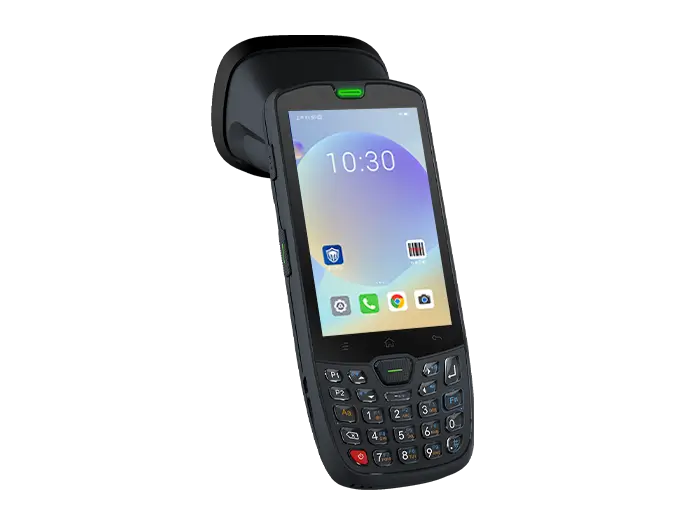

Seuic AUTOID 10-DPM Android Mobile Computer for DPM Codes in Dera
Seuic AUTOID 10-DPM Android Mobile Computer for DPM Codes Seuic AUTOID 10-DPM Android Mobile Computer for DPM Codes Seuic AUTOID 10-DPM Android Mobile Computer for DPM Codes

The AUTOID 10-DPM brings the AUTOID 10 platform to direct part marking (DPM) applications. Its DP and HDP scan engines, backed by on-device AI computing, are aimed at reading dot-peened, laser-etched and low-contrast codes on metal and plastic parts, as well as OCR text, which standard imagers often struggle with.

It runs Android 14 with GMS and AER on a Qualcomm 2.0GHz octa-core processor with 4GB RAM and 64GB storage. A 4-inch low-temperature-resistant touch display, 27-key backlit keypad, dual-band Wi-Fi (ax ready), Bluetooth 5.1 and a 5360mAh battery with 18W fast charging keep it productive, and the IP65 housing is rated for 1.5 m drops.

Typical Indian deployments include automotive and auto-component plants, electronics (EMS/SMT) lines, engineering and machinery manufacturing, and aerospace or defence suppliers that must trace every serialised part through production and quality inspection.

Barcode Vault is the national partner, importer and distributor of SEUIC barcode scanners and mobile computers in India, with a complete sales and service centre for SEUIC. For the best price call 9717122688 or 8527522688, or mail us at gm@indianbarcode.com.

  • Key Features

    • DP and HDP scan engines for direct part mark (DPM) codes
    • AI-assisted recognition of DPM barcodes and OCR characters
    • Qualcomm octa-core 2.0GHz processor, Android 14 with GMS and AER
    • 4GB RAM / 64GB UFS storage, microSD up to 128GB
    • 4.0-inch WVGA touchscreen that works with gloves or wet hands
    • 27-key backlit keypad with side scan keys and PTT key
    • 5360mAh battery with 18W fast charging and backup battery
    • IP65 sealing with 1.5 m drop rating
    • Dual-band Wi-Fi (802.11ax ready) and Bluetooth 5.1

    Applications

    • Automotive and auto-component manufacturing
    • Electronics and SMT production
    • Part traceability and quality inspection
    • Engineering and machinery manufacturing
    • Aerospace and defence suppliers
    • Work-in-progress tracking
  • Physical Characteristics
    Dimensions7.6 in. L x 3.0 in. W x 2.7 in. H; 193.54 mm L x 77.21 mm W x 68.89 mm H
    Weight12.1oz. / 343g (include battery, varies by different configurations)
    Display4.0 in. WVGA (800 x 480)
    Touch PanelIndustrial grade low temperature resistant IPS screen, capacitive, touchable, dual mode touch-with or without a thick glove/with or without wet hand
    PowerOptional detachable 3.85V rechargeable 5360mAh Li-ion battery (built-in backup li-ion battery of 50mAh 16C); Side Type-C interface, support quick charge, intelligent identification of PC and charger, support 18W fast charge; End interface: support 5V/2V charging
    Expansion SlotMicro SD Card, 128GB SDHC compatible
    Interface / CommunicationSupport Type-C, support OTG
    NotificationsSound, vibrator, LED light indication
    Keypad27 keys: front key*24, side scan key*2, PTT key*1 (inner light-transmitting industrial IMD keyboard), LED (buttons with backlight)
    Voice and AudioBuilt-in single loudspeaker, built-in dual microphone, Type-C support earphone
    Performance Characteristics
    CPUQualcomm Octa-core 2.0GHz
    Operating SystemAndroid 14, GMS with AER
    Memory4GB LPDDR4 RAM / 64GB UFS2.1 ROM
    User Environment
    Operating Temp.-4 °F to 122 °F / -20 °C to +50 °C
    Storage Temp.-40 °F to 158 °F / -40 °C to +70 °C
    Humidity5% to 95%, non-condensing
    Drop Spec.Multiple 4.9 ft. / 1.5m drops to marble across the operating temperature range
    Tumble Spec.500 rounds of tumble from 1.6 ft. / 0.5 m equals to 1000 impacts
    SealingIP65
    Electrostatic Discharge (ESD)±15 kV air discharge, ±8 kV direct discharge
    SensorOptical sensor, proximity sensor, gravity sensor, gyroscope, E-compass
    Data Capture
    ScanningDP and HDP scan engine
    Wireless Connectivity
    WLAN RadioIEEE 802.11a/b/g/n/ac/ax ready (2.4G/5G dual-frequency WIFI)
    WLAN-Working ChannelCH1-CH13, CH34-CH165
    Security of WLANOPEN, WEP, WPA2-PSK (TKIP+AES), TLS, TTLS (MS-CHAP), TTLS (MS-CHAP v2), TTLS (CHAP), TTLSMD5, TTLS-PAP, PEAP-TLS, PEAP (MS-CHAP v2), AES, etc
    WPAN-BluetoothBluetooth 5.1 (support BLE)
    Third Party Application Support
    System SoftwareAndroid 14
    System Programming EnvironmentEclipse, Android Studio
    • Health careSeuic AUTOID 10-DPM Android Mobile Computer for DPM Codes can be used in Health care Industry
    • RetailsSeuic AUTOID 10-DPM Android Mobile Computer for DPM Codes can be used on Retail Stores
    • LogisticsSeuic AUTOID 10-DPM Android Mobile Computer for DPM Codes Mostly used in Logistics Industry for Asset Management and Tracking
    • ManufacturingManufacturing Industry uses Seuic AUTOID 10-DPM Android Mobile Computer for DPM Codes
    • GovernmentSeuic AUTOID 10-DPM Android Mobile Computer for DPM Codes used in various Government Sectors
    • Travel & LeisureSeuic AUTOID 10-DPM Android Mobile Computer for DPM Codes for Travel & Leisure
    • Special MaterialsSeuic AUTOID 10-DPM Android Mobile Computer for DPM Codes for Special Materials
