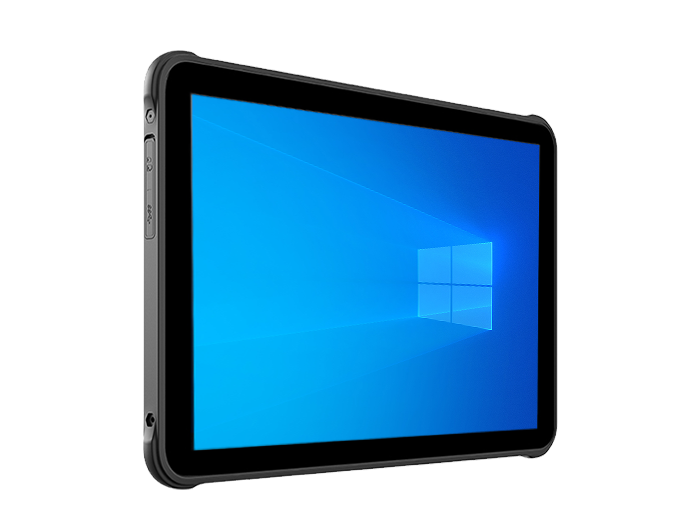

Seuic AUTOID Pad Air Win Rugged Windows Tablet in Kapashera
Seuic AUTOID Pad Air Win Rugged Windows Tablet Seuic AUTOID Pad Air Win Rugged Windows Tablet Seuic AUTOID Pad Air Win Rugged Windows Tablet

The AUTOID Pad Air-(Win) is designed for organisations that run Windows applications on the move. It uses an Intel Core m3-8100Y dual-core processor (up to 3.4GHz) with 8GB RAM and a 128GB SSD (256GB optional), and ships with Windows 10 IoT Enterprise 64-bit, upgradeable to Windows 11 IoT.

Its 10.1-inch FHD (1920 x 1200) touchscreen supports wet-touch input, and an integrated 2D barcode scanner provides fast decoding. A Type-C port with USB 3.0 and DisplayPort, bottom docking contacts, dual-band Wi-Fi 2x2 MIMO, Bluetooth, stereo speakers and 8 MP / 2 MP cameras round out the package. It weighs 690 g, is IP65 sealed and is rated for 1.2 m drops.

It is well suited to Indian manufacturing plants running Windows-based MES or ERP clients, warehouse management with legacy Windows software, healthcare ward rounds, and field engineering teams that need desktop applications in a rugged tablet.

Barcode Vault is the national partner, importer and distributor of SEUIC barcode scanners and mobile computers in India, with a complete sales and service centre for SEUIC. For the best price call 9717122688 or 8527522688, or mail us at gm@indianbarcode.com.

  • Key Features

    • Windows 10 IoT Enterprise 64-bit, upgradeable to Windows 11 IoT
    • Intel Core m3-8100Y processor (up to 3.4GHz)
    • 8GB RAM with 128GB SSD (256GB optional)
    • 10.1-inch FHD (1920 x 1200) touchscreen with wet-touch support
    • Built-in 2D barcode scanner
    • Type-C with USB 3.0 and DisplayPort, plus bottom docking interface
    • Dual-band Wi-Fi 2x2 MIMO and Bluetooth
    • IP65 sealing, 1.2 m drop rating, 690 g

    Applications

    • Manufacturing (MES/ERP)
    • Warehousing
    • Healthcare
    • Field engineering
    • Logistics
    • Public sector
  • Physical Characteristics
    Dimensions10.1 in. L x 6.8 in. W x 0.4(0.5) in. H; 258 mm L x 173 mm W x 10.8(12) mm H
    Weight24.3oz/690g with standard battery
    Display10.1 in. full angle liquid crystal display , FHD (1920 x 1200)
    Touch PanelCapacitive 10 touch, water touch support
    PowerBottom contact interface: DC IN: Maximum Input Power 27W,Non-removable 7.7 V lithium rechargeable battery; Typical value: 5070mAh; Rated 4920mAh; USB TYPE-C interface for PD fast charging
    Expansion SlotMicro SD Card, SDXC support
    Interface / CommunicationTYPE-C interface, support host charging, support USB3.0(down-compatible USB2.0), support displayport, headphones, etc.; bottom interface: USB2.0, 5V output, DC input, IO
    LightRed for charging (breathing for low power) and green for fully charged; Blue (reserved) and red for scan indication
    Buttons3 buttons (power, volume +, -)
    Voice and AudioBuilt-in stereo speaker, 4Ω 2W * 2, built-in dual microphones, support for TYPEC digital headsets
    Performance Characteristics
    CPUIntel core M3-8100Y, 2-Core 4-thread, 1.1 GHz, maximum core frequency 3.4 GHz/Intel UHD 615, basic frequency 300 MHz, maximum dynamic frequency 900 MHz
    Operating SystemWindows 10 IoT enterprise 64 bit(Upgradeable to Windows 11 IoT)
    Memory8 GB (LPDDR3 1867 MHz) / 128 GB (solid state Drive,256G optional)
    User Environment
    Operating Temp.14 °F to 122 °F/-10 °C to +50 °C
    Storage Temp.Battery included: -4 °F to 140 °F/-20 °C to +60 °C
    Humidity5% to 95%, non-condensing
    Drop Spec.3.9 ft./1.2 m drops to concrete at room temperature
    SealingIP65
    Electrostatic Discharge (ESD)±15 kV air discharge, ±8 kV direct discharge
    SensorAccelerometer, ambient light sensors
    Data Capture
    Scanning2D barcode scanner
    CameraFront: 2 MP fixed focus; Rear: 8 MP autofocus, support flashlight
    Wireless Connectivity
    WLAN RadioIEEE 802.11 a/b/g/n/ac/ (2.4G/5G dual-band WIFI) 2X2 MIMO BT
    WLAN-Working ChannelCh1 ~ CH13, CH34 ~ CH64, CH100 ~ 144, CH149 ~ CH165
    Accessories
    StandardPD adapter × 1, Dual Type-C data cable × 1, Hand Strap × 1
    AdditionalMultifunctional cradle, silicone protective cover, steel film, shoulder strap, bracket for fixed mounting, docking and connecting rod
    Third Party Application Support
    System SoftwareWindows 10/11
    System Programming EnvironmentVisual Studio
    • Health careSeuic AUTOID Pad Air Win Rugged Windows Tablet can be used in Health care Industry
    • RetailsSeuic AUTOID Pad Air Win Rugged Windows Tablet can be used on Retail Stores
    • LogisticsSeuic AUTOID Pad Air Win Rugged Windows Tablet Mostly used in Logistics Industry for Asset Management and Tracking
    • ManufacturingManufacturing Industry uses Seuic AUTOID Pad Air Win Rugged Windows Tablet
    • GovernmentSeuic AUTOID Pad Air Win Rugged Windows Tablet used in various Government Sectors
    • Travel & LeisureSeuic AUTOID Pad Air Win Rugged Windows Tablet for Travel & Leisure
    • Special MaterialsSeuic AUTOID Pad Air Win Rugged Windows Tablet for Special Materials
