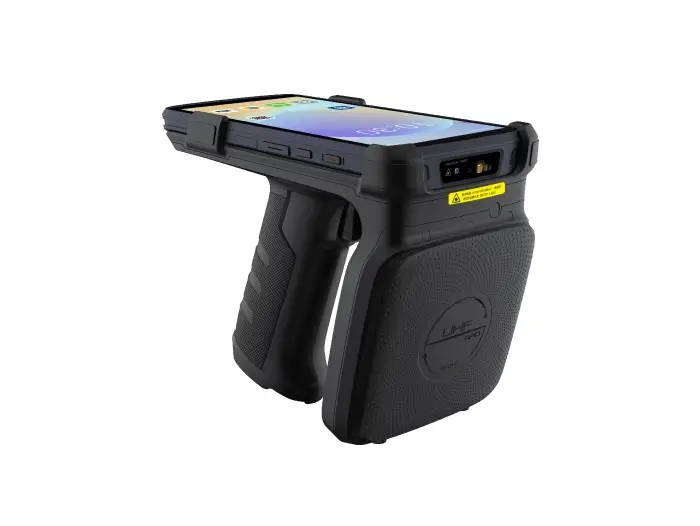

Seuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld in Kapashera
Seuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld Seuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld Seuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld

The CRUISE2 5G Grip Tsled combines the CRUISE2 5G mobile computer with a UHF RFID grip. The Android 14 main unit uses a 2.4GHz octa-core processor with 4GB/64GB (8GB/128GB optional), a 6-inch touchscreen, a middle-range 2D imager and 13 MP / 5 MP cameras, plus 5G, dual-band Wi-Fi and GPS/GLONASS/BeiDou.

The UHF sled, powered by an Impinj E710 chip, supports ISO 18000-6C / EPC C1G2 tags with 1-33 dBm output, reads of 9 m or more and up to about 1,300 tags per second. A 5000mAh main battery plus a replaceable 3350mAh handle battery (6700mAh optional) extend runtime, and the unit is IP67 sealed with 1.5 m drop resistance.

In India it is suitable for retail and apparel inventory, warehouse and logistics RFID, cash-in-transit and bank asset management, and field teams that need 5G connectivity with both RFID and barcode capture.

Barcode Vault is the national partner, importer and distributor of SEUIC barcode scanners and mobile computers in India, with a complete sales and service centre for SEUIC. For the best price call 9717122688 or 8527522688, or mail us at gm@indianbarcode.com.

  • Key Features

    • 5G Android 14 handheld with detachable UHF RFID grip sled
    • Impinj E710 reader chip, up to about 1,300 tags per second
    • UHF read range of 9 m or more
    • Middle-range 2D imager for barcodes
    • 6-inch 1440 x 720 touchscreen
    • Octa-core 2.4GHz, 4GB/64GB (8GB/128GB optional)
    • 5000mAh main battery plus 3350mAh (or 6700mAh) handle battery
    • IP67 sealing with 1.5 m drop rating

    Applications

    • Retail and apparel RFID
    • Warehousing and logistics
    • Banking asset and cash management
    • Field service
    • Inventory audits
    • Manufacturing
  • Physical Characteristics
    Dimensions7.4 in. L x 3.6 in. W x 5.4 in. T; 189(H)*91(W)*138(T) mm
    Weight23.6 oz. / 668 g with battery
    Display6 inch display with capacitive touch, 1440(H)×720(W)
    Power8350 mAh (Main unit 5000mAH + Handle 3350mAh replaceable), the handle can also be equipped with a 6700 mAh battery.; Bottom Type C USB port, support QC3.0 fast charging, intelligent recognition of PC and charger
    SIM Card SlotSIM (Nano-sim*2)
    Expansion SlotMicro SD Card, compatible up to 256GB
    Interface / CommunicationWaterproof Type C USB interface, support USB2.0 HighSpeed, support OTG.
    NotificationsSound, vibration, LED indicator light
    ButtonsPower + Volume (+, -) + UHF + SCAN + Custom
    Voice and AudioBuilt-in single speaker, built-in dual microphones
    Performance Characteristics
    CPUOcta core 2.4GHz
    Operating SystemAndroid 14
    Memory4GB RAM / 64 GB Flash memory (optional 8GB+128GB)
    User Environment
    Operating Temp.-4℉ / -20°C to +131℉ / +50°C
    Storage Temp.-40℉ / -40°C to +158℉ / +70°C (no battery)
    Humidity5% to 95%, non-condensing
    Drop Spec.Multiple drops from 4.9 ft. / 1.5 m
    SealingIP67
    Electrostatic Discharge (ESD)±15kV Air discharge, ±8kV direct discharge
    SensorG-sensor, light sensor, distance sensor, electronic compass, gyroscope
    Data Capture
    Scan EngineMiddle range 2D imager scan engine
    Front CameraFixed focus. 5MP
    Rear CameraAuto-focus, 13 MP, support double flashlights, PDAF phase focusing
    RFID Read/Write(UHF)- Standard Configuration
    Read-write tagConforms to ISO-18000-6C/EPCC1G2
    Antenna Parameter5dBi circular polarization, default 902-928MHz
    Frequency860-930 MHz (customized according to country's regional regulations), default 920-925 MHz
    Operation ModeOperates as a frequency hopping spread spectrum (FHSS) or fixed frequency transmission mode
    Output Power1~33dBm
    Reading Distance≥9m @9662 white card (practical distance subject to label and environment)
    Writing Distance0-6m@9662 white card (practical distance subject to label and environment)
    Group Reading SpeedAchieve 1300 frames/sec @impinj H47 (practical distance subject to label and environment)
    Reading Rate12 ms per separate character (32bits) on average
    Writing Rate60 ms per separate character (32bits) on average
    Power Consumptionless than 10W (average)
    GPS Location information collection
    Positioning SystemGPS+GLONASS+Beidou, support AGPS
    FrequencyGPS: L1; Beidou: B1; GLONASS: L1
    Accuracy5-10meter
    Wireless Connectivity
    WLAN-ProtocolIEEE 802.11ac/a/b/g/n/d/e/h/i/j/k/r/v/w（2.4G/5G dual-band WIFI）
    WLAN-Frequency RangeDepending on the country (region), 2.4GHz is 2.412GHz-2.472GHz; 5GHz is 5.180GHz-5.825GHz
    Accessories
    StandardPower adapter×1, Type C data communication cable×1, SIM card removal tool×1
    Third Party Application Support
    System SoftwareAndroid 14.0
    System Programming EnvironmentAndroid Studio
    • Health careSeuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld can be used in Health care Industry
    • RetailsSeuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld can be used on Retail Stores
    • LogisticsSeuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld Mostly used in Logistics Industry for Asset Management and Tracking
    • ManufacturingManufacturing Industry uses Seuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld
    • GovernmentSeuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld used in various Government Sectors
    • Travel & LeisureSeuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld for Travel & Leisure
    • Special MaterialsSeuic CRUISE2 5G Grip Tsled UHF RFID 5G Android Handheld for Special Materials
