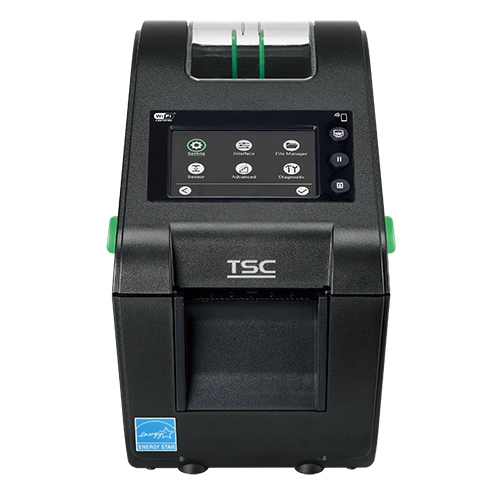

TSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer in Sikkim
TSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer TSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer TSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer

A bigger roll means fewer changes during a shift, which matters at high-volume pharmacy, food-service and wristband stations. These models also offer the Save Labels feature, which removes manual label alignment and feeding after a roll change and reduces waste.

Indian hospital admission desks, pharmacy chains, QSR kitchens and retail counters can standardise on one 2-inch platform and choose the variant they need: LT models add a touchscreen and Ethernet, and HC models add an antimicrobial casing with a medical-grade power supply.

Barcode Vault is a sales and service provider for TSC barcode printers and printheads across India. For the best price call 8527522688 or mail us at gm@indianbarcode.com.

  • Key Features

    • Print resolution: 8 dots / mm (203 dpi)
    • Max. print speed: 203mm (8") / second
    • Max. print width: 54mm (2.13")
    • Wired connectivity: DH220L: Serial RS-232; USB; USB Host; DH220LT: Ethernet; Serial RS-232; USB; USB Host; DH220LHC: Ethernet; Serial RS-232; USB; USB Host; DH220LTHC: Ethernet; Serial RS-232; USB; USB Host
    • Direct thermal printing, no ribbon required
    • Takes media rolls up to 6.5 inches OD
    • Save Labels feature reduces waste after roll changes
    • LED or colour touchscreen variants
    • HC variants with antimicrobial, disinfectant-ready casing
    • Auto-switch printer language emulation

    Applications

    • Patient wristbands
    • Pharmacy labels
    • Food order and kitchen labels
    • Receipts
    • Retail labels
  • Printing
    Resolution8 dots / mm (203 dpi)
    Printing MethodDirect Thermal
    Max. Print Speed203mm (8") / second
    Max. Print Width54mm (2.13")
    Max. Print Length25,400mm (1,000")
    Physical
    EnclosureDH220L: Clamshell with double-walled plastic; DH220LT: Clamshell with double-walled plastic; DH220LHC: Clamshell with double-walled plastic; Disinfectant-ready plastic, designed with an easy-to-clean surface and a sealed button interface; Antibacterial enclosure; DH220LTHC: Clamshell with double-walled plastic; Disinfectant-ready plastic, designed with an easy-to-clean surface and a sealed button interface; Antibacterial enclosure
    Physical Dimension146mm (W) x 206mm (H) x 264mm (D) / 5.75" (W) x 8.11" (H) x 10.39" (D)
    Weight2.0kg (4.41 lbs)
    Hardware
    Processor32-bit RISC CPU
    Memory512 MB Flash memory; 256 MB SDRAM; microSD card reader for Flash memory expansion, max. 512 GB, FAT32 and exFAT only
    Operation Switch, Button, LED/LCDDH220L: 1 power switch; 1 feed button; 1 pause button; 1 reprint button; 1 status indicator; 3 intuitive icon indicators; DH220LT: 1 power switch; 1 feed button; 1 pause button; 1 reprint button; 3.5" color touch display, 480 x 320 pixel; DH220LHC: 1 power switch; 1 feed button; 1 pause button; 1 reprint button; 1 status indicator; 3 intuitive icon indicators; DH220LTHC: 1 power switch; 1 feed button; 1 pause button; 1 reprint button; 3.5" color touch display, 480 x 320 pixel
    SensorsTransmissive gap sensor; Black mark reflective sensor (position adjustable); Head open sensor; Save Labels sensor
    Real Time ClockStandard
    Connectivity
    InterfaceUSB 2.0; RS-232; USB Host; Internal Ethernet, 10/100 Mbps; 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module (dealer option); Bluetooth 5.3 (dealer option); MFi Bluetooth 5.3 (factory option)
    Hardwire ConnectivityDH220L: Serial RS-232; USB; USB Host; DH220LT: Ethernet; Serial RS-232; USB; USB Host; DH220LHC: Ethernet; Serial RS-232; USB; USB Host; DH220LTHC: Ethernet; Serial RS-232; USB; USB Host
    Wireless ConnectivityBluetooth; Bluetooth MFi; Wi-Fi; Wi-Fi with Bluetooth
    Enterprise Printer ManagementTSC Console; SOTI Connect (license required)
    Media & Ribbon
    Label Roll Capacity165mm (6.5") OD
    Media TypeContinuous, die-cut, black mark, fan-fold, notch (outside wound), linerless media (for linerless option), wristband
    Media WidthDH220L: 10 - 60mm (0.39" - 2.36"); DH220LT: 10 - 60mm (0.39" - 2.36"); DH220LHC: 10mm - 60mm (0.39" - 2.36"); DH220LTHC: 10mm - 60mm (0.39" - 2.36")
    Media Thickness0.06mm - 0.19mm (2.36mil - 7.48mil)
    Media Core Diameter25.4mm - 38.1mm (1" - 1.5")
    Label Length5mm - 25,400mm (0.20" - 1,000")
    Fonts, Barcodes & Language
    Internal Font8 alpha-numeric bitmap fonts; Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font; ARIALUNI.TTF Unicode true type font
    Barcode1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS; 2D barcode TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode), rMQR Code
    Font & Barcode Rotation0, 90, 180, 270 degree
    Printer LanguageTSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
    Power
    PowerDH220L: External universal switching power supply; Input: AC 100-240V, 1.5A, 50-60Hz; Output: DC 24V, 2.5A, 60W; DH220LT: External universal switching power supply; Input: AC 100-240V, 1.5A, 50-60Hz; Output: DC 24V, 2.5A, 60W; DH220LHC: External universal switching power supply; IEC 60601-1 certified power supply; Input: AC 100-240V, 2.0A, 50-60Hz; Output: DC 24V, 2.5A, 60W; DH220LTHC: External universal switching power supply; IEC 60601-1 certified power supply; Input: AC 100-240V, 2.0A, 50-60Hz; Output: DC 24V, 2.5A, 60W
    Environment & Compliance
    Environment ConditionOperation: 0°C to 40°C (32°F to 104°F), 25% - 85% non-condensing; Storage: -40°C to 60°C (-40°F to 140°F), 10% - 90% non-condensing
    Safety RegulationPrinter: CB, FCC Class B, IC , CTÜVUS, NoM, CE Class B, UKCA, EAC, CCC, BIS, RCM, BSMI, KC, Energy Star 3.2; Wi-Fi/Bluetooth: FCC, IC, CE, UKCA, SRRC, RCM, NCC; MFi Bluetooth: FCC, IC, CE, UKCA, SRRC, RCM, NCC; HF RFID: FCC, IC, CE, UKCA, RCM, NCC
    Environmental ConcernComply with RoHS, REACH, WEEE, China RoHS
    RFID
    HF RFIDDH220L: N/A; DH220LT: Standard: ISO/IEC 15693, ISO/IEC 14443 Type A, ISO/IEC 18092; External fixed antenna, under media; Encoding failures: Minimum 1-inch overstrike area; Printer language: TSPL (standard), SBPL (downloadable); DH220LHC: N/A; DH220LTHC: Standard: ISO/IEC 15693, ISO/IEC 14443 Type A, ISO/IEC 18092; External fixed antenna, under media; Encoding failures: Minimum 1-inch overstrike area; Printer language: TSPL (standard), SBPL (downloadable)
    Warranty & Options
    AccessoriesQuick start guide; USB cable; Power cord; External universal switching power supply
    Limited WarrantyPrinter: 2 years; Printhead: 25km (1 million inches) or 12 months which comes first; Platen: 50km (2 million inches) or 12 months which comes first
    Factory OptionMFi Bluetooth 5.3
    Dealer OptionPeel-off module; Guillotine cutter (full cut and partial cut); 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module; Bluetooth 5.3 module; Linerless with cutter (full cut); Linerless with tear; HF RFID tear-off upgrade kit; HF RFID cutter upgrade kit
    User OptionExternal label roll mount; KP-200 Plus keyboard display unit; PDF Print Dongle; BP-4000 smart battery station
    General
    TypeDesktop
    • Health careTSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer can be used in Health care Industry
    • RetailsTSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer can be used on Retail Stores
    • LogisticsTSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer Mostly used in Logistics Industry for Asset Management and Tracking
    • ManufacturingManufacturing Industry uses TSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer
    • GovernmentTSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer used in various Government Sectors
    • Travel & LeisureTSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer for Travel & Leisure
    • Special MaterialsTSC DH220L / DH220LT / DH220LHC / DH220LTHC Desktop Barcode Printer for Special Materials
