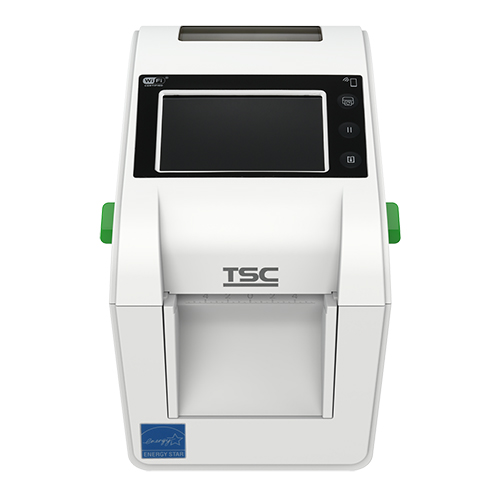

TSC DH220T / DH220THC Desktop Barcode Printer in Sikkim
TSC DH220T / DH220THC Desktop Barcode Printer TSC DH220T / DH220THC Desktop Barcode Printer TSC DH220T / DH220THC Desktop Barcode Printer

The touchscreen gives operators clear prompts for media setup and error recovery, and templates stored on the printer can be printed straight from the screen. Remote management through TSC Console and SOTI Connect keeps fleets of these printers updated across branches.

In India this model suits hospital wristband and specimen printing, pharmacy chains, restaurant and cloud-kitchen order labels, and retail counters. As a direct thermal printer it avoids ribbon costs completely.

Barcode Vault is a sales and service provider for TSC barcode printers and printheads across India. For the best price call 8527522688 or mail us at gm@indianbarcode.com.

  • Key Features

    • Print resolution: 8 dots / mm (203 dpi)
    • Max. print speed: 203mm (8") / second
    • Max. print width: 54mm (2.13")
    • Wired connectivity: Ethernet; Serial RS-232; USB; USB Host
    • Direct thermal printing, no ribbon required
    • Colour LCD touchscreen with buttons
    • HC version with antimicrobial, disinfectant-ready casing
    • IEC 60601-1 compliant power supply on HC version
    • Auto-switch printer language emulation

    Applications

    • Patient wristbands
    • Specimen labels
    • Pharmacy labels
    • Food order labels
    • Retail counter labels
  • Printing
    Resolution8 dots / mm (203 dpi)
    Printing MethodDirect Thermal
    Max. Print Speed203mm (8") / second
    Max. Print Width54mm (2.13")
    Max. Print Length25,400mm (1,000")
    Physical
    EnclosureDH220T: Clamshell with double-walled plastic; DH220THC: Clamshell with double-walled plastic; Disinfectant-ready plastic, designed with an easy-to-clean surface and a sealed button interface; Antibacterial enclosure
    Physical Dimension138mm (W) x 172mm (H) x 210mm (D) / 5.43" (W) x 6.77" (H) x 8.27" (D)
    Weight1.6kg (3.53lbs)
    Hardware
    Processor32-bit RISC CPU
    Memory128 MB Flash memory; 128 MB SDRAM; microSD card reader for Flash memory expansion, max. 512 GB, FAT32 and exFAT only
    Operation Switch, Button, LED/LCDDH220T: 1 power switch; 1 feed button; 1 pause button; 1 reprint button; 3.5" color touch display, 480 x 320 pixel; DH220THC: 1 power switch; 1 feed button; 1 pause button
    SensorsTransmissive gap sensor; Black mark reflective sensor (position adjustable); Head open sensor
    Real Time ClockStandard
    Connectivity
    InterfaceUSB 2.0; RS-232; USB Host; Internal Ethernet, 10/100 Mbps; 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module (dealer option); Bluetooth 5.0 (dealer option); MFi Bluetooth 5.0 (factory option)
    Hardwire ConnectivityEthernet; Serial RS-232; USB; USB Host
    Wireless ConnectivityBluetooth; Bluetooth MFi; Wi-Fi; Wi-Fi with Bluetooth
    Enterprise Printer ManagementTSC Console; SOTI Connect (license required)
    Media & Ribbon
    Label Roll Capacity127mm (5") OD
    Media TypeContinuous, die-cut, black mark, fan-fold, notch (outside wound), linerless media (for linerless option)
    Media WidthDH220T: 15 - 60mm (0.59" - 2.36"); DH220THC: 15mm - 60mm (0.59" - 2.36")
    Media Thickness0.06mm - 0.19mm (2.36mil - 7.48mil)
    Media Core Diameter25.4mm - 38.1mm (1" - 1.5")
    Label Length5mm - 25,400mm (0.20" - 1,000")
    Fonts, Barcodes & Language
    Internal Font8 alpha-numeric bitmap fonts; Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font; ARIALUNI.TTF Unicode true type font
    Barcode1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS; 2D barcode TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode), rMQR Code
    Font & Barcode Rotation0, 90, 180, 270 degree
    Printer LanguageTSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
    Power
    PowerDH220T: External universal switching power supply; Input: AC 100-240V, 1.5A, 50-60Hz; Output: DC 24V, 2.5A, 60W; DH220THC: External universal switching power supply; IEC 60601-1 certified power supply; Input: AC 100-240V, 2.0A, 50-60Hz; Output: DC 24V, 2.5A, 60W
    Environment & Compliance
    Environment ConditionOperation: 0°C to 40°C (32°F to 104°F), 25% - 85% non-condensing; Storage: -40°C to 60°C (-40°F to 140°F), 10% - 90% non-condensing
    Safety RegulationDH220T: Printer: CB, FCC Class B, IC , CTÜVUS, NoM, CE Class B, UKCA, EAC, CCC, RCM, BSMI, Energy Star 3.2; Wi-Fi/Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, RCM, NCC; MFi Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, RCM, NCC; DH220THC: Printer: CB, FCC Class B, IC , CTÜVUS, CE Class B, UKCA, EAC, CCC, RCM, Energy Star 3.2; Wi-Fi/Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, RCM; MFi Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, RCM
    Environmental ConcernComply with RoHS, REACH, WEEE, China RoHS
    Warranty & Options
    AccessoriesDH220T: Quick start guide; USB cable; Power cord; External universal switching power supply; DH220THC: Quick start guide; USB cable
    Limited WarrantyPrinter: 2 years; Printhead: 25km (1 million inches) or 12 months which comes first; Platen: 50km (2 million inches) or 12 months which comes first
    Factory OptionMFi Bluetooth 5.0
    Dealer OptionDH220T: Peel-off module; Guillotine cutter (full cut and partial cut); 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module; Bluetooth 5.0 module; Linerless with cutter (full cut); Linerless with tear; DH220THC: Peel-off module; Guillotine cutter (full cut and partial cut); 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module
    User OptionDH220T: External label roll mount; KP-200 Plus keyboard display unit; 10mm narrow media adaptor; PDF Print Dongle; BP-4000 smart battery station; DH220THC: External label roll mount; KP-200 Plus keyboard display unit; 10mm narrow media adaptor
    General
    TypeDesktop
    • Health careTSC DH220T / DH220THC Desktop Barcode Printer can be used in Health care Industry
    • RetailsTSC DH220T / DH220THC Desktop Barcode Printer can be used on Retail Stores
    • LogisticsTSC DH220T / DH220THC Desktop Barcode Printer Mostly used in Logistics Industry for Asset Management and Tracking
    • ManufacturingManufacturing Industry uses TSC DH220T / DH220THC Desktop Barcode Printer
    • GovernmentTSC DH220T / DH220THC Desktop Barcode Printer used in various Government Sectors
    • Travel & LeisureTSC DH220T / DH220THC Desktop Barcode Printer for Travel & Leisure
    • Special MaterialsTSC DH220T / DH220THC Desktop Barcode Printer for Special Materials
