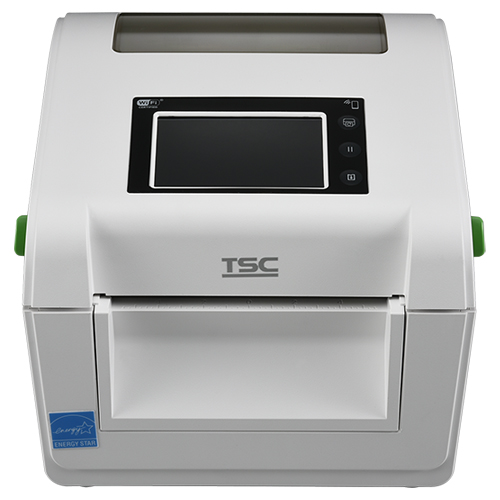

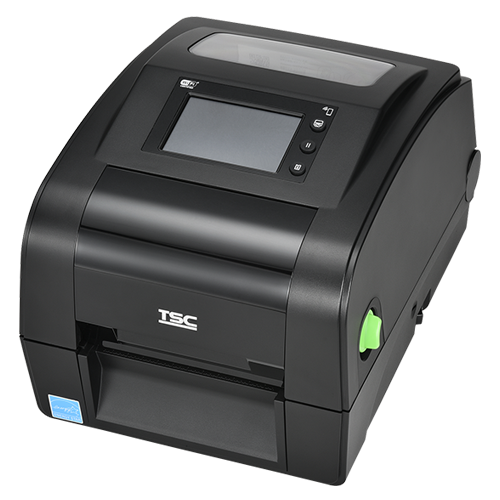

TSC DH240T / DH240THC Desktop Barcode Printer in Sikkim
TSC DH240T / DH240THC Desktop Barcode Printer TSC DH240T / DH240THC Desktop Barcode Printer TSC DH240T / DH240THC Desktop Barcode Printer

Direct thermal printing removes ribbons from the workflow, which suits high-volume shipping and short-life labels where speed and low running cost matter most. The touchscreen, auto-switch language emulation and remote tools such as TSC Console and SOTI Connect make the DH240T / DH240THC easy to roll out across many sites.

Indian e-commerce warehouses, courier hubs, quick-commerce dark stores and hospital labs are typical homes for this printer. Media from 15 mm to 120 mm wide is supported, and upgrade kits for Wi-Fi, Bluetooth, peeler, cutter and linerless printing are available.

Barcode Vault is a sales and service provider for TSC barcode printers and printheads across India. For the best price call 8527522688 or mail us at gm@indianbarcode.com.

  • Key Features

    • Print resolution: 8 dots / mm (203 dpi)
    • Max. print speed: 203mm (8") / second
    • Max. print width: 108mm (4.25")
    • Wired connectivity: Ethernet; Serial RS-232; USB; USB Host
    • Direct thermal printing, no ribbon required
    • Colour LCD touchscreen with buttons
    • Auto-switch printer language emulation
    • TPH Care self-diagnostics
    • HC version with antimicrobial casing and IEC 60601-1 power supply
    • Upgrade kits for Wi-Fi, Bluetooth, peeler, cutter and linerless use

    Applications

    • E-commerce and courier shipping labels
    • Warehouse picking and packing
    • Patient and specimen labels
    • Retail price and shelf labels
    • Receipts
  • Printing
    Resolution8 dots / mm (203 dpi)
    Printing MethodDirect Thermal
    Max. Print Speed203mm (8") / second
    Max. Print Width108mm (4.25")
    Max. Print Length25,400mm (1,000")
    Physical
    EnclosureDH240T: Clamshell with double-walled plastic; DH240THC: Clamshell with double-walled plastic; Disinfectant-ready plastic, designed with an easy-to-clean surface and a sealed button interface; Antibacterial enclosure
    Physical Dimension208mm (W) x 170mm (H) x 235mm (D) / 8.19" (W) x 6.69" (H) x 9.25" (D)
    Weight2.1kg (4.63lbs)
    Hardware
    Processor32-bit RISC CPU
    Memory128 MB Flash memory; 128 MB SDRAM; microSD card reader for Flash memory expansion, max. 512 GB, FAT32 and exFAT only
    Operation Switch, Button, LED/LCDDH240T: 1 power switch; 1 feed button; 1 pause button; 1 reprint button; 3.5" color touch display, 480 x 320 pixel; DH240THC: 1 power switch; 1 feed button; 1 pause button
    SensorsTransmissive gap sensor; Black mark reflective sensor (position adjustable); Head open sensor
    Real Time ClockStandard
    Connectivity
    InterfaceUSB 2.0; RS-232; USB Host; Internal Ethernet, 10/100 Mbps; 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module (dealer option); Bluetooth 5.0 (dealer option); MFi Bluetooth 5.0 (factory option)
    Hardwire ConnectivityEthernet; Serial RS-232; USB; USB Host
    Wireless ConnectivityBluetooth; Bluetooth MFi; Wi-Fi; Wi-Fi with Bluetooth
    Enterprise Printer ManagementTSC Console; SOTI Connect (license required)
    Media & Ribbon
    Label Roll Capacity127mm (5") OD
    Media TypeContinuous, die-cut, black mark, fan-fold, notch (outside wound), linerless media (for linerless option)
    Media Width15mm - 120mm (0.59" - 4.72")
    Media Thickness0.06mm - 0.19mm (2.36mil - 7.48mil)
    Media Core Diameter25.4mm - 38.1mm (1" - 1.5")
    Label Length5mm - 25,400mm (0.20" - 1,000")
    Fonts, Barcodes & Language
    Internal Font8 alpha-numeric bitmap fonts; Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font; ARIALUNI.TTF Unicode true type font
    Barcode1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS; 2D barcode TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode), rMQR Code
    Font & Barcode Rotation0, 90, 180, 270 degree
    Printer LanguageTSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
    Power
    PowerDH240T: External universal switching power supply; Input: AC 100-240V, 2.0A, 50-60Hz; Output: DC 24V, 3.75A, 90W; DH240THC: External universal switching power supply; IEC 60601-1 certified power supply; Input: AC 100-240V, 2.0A, 50-60Hz; Output: DC 24V, 3.75A, 90W
    Environment & Compliance
    Environment ConditionOperation: 0°C to 40°C (32°F to 104°F), 25% - 85% non-condensing; Storage: -40°C to 60°C (-40°F to 140°F), 10% - 90% non-condensing
    Safety RegulationDH240T: Printer: CB, FCC Class B, IC , CTÜVUS, NoM, CE Class B, UKCA, EAC, CCC, BIS, RCM, BSMI, KC, Energy Star 3.2; Wi-Fi/Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, WPC, RCM, NCC, KC; MFi Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, RCM, NCC, KC; DH240THC: Printer: CB, FCC Class B, IC , CTÜVUS, CE Class B, UKCA, EAC, CCC, BIS, RCM, BSMI, KC, Energy Star 3.2; Wi-Fi/Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, WPC, RCM, NCC, KC; MFi Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, RCM, NCC, KC
    Environmental ConcernComply with RoHS, REACH, WEEE, China RoHS
    Warranty & Options
    AccessoriesDH240T: Quick start guide; USB cable; Power cord; External universal switching power supply; DH240THC: Quick start guide; USB cable
    Limited WarrantyPrinter: 2 years; Printhead: 25km (1 million inches) or 12 months which comes first; Platen: 50km (2 million inches) or 12 months which comes first
    Factory OptionMFi Bluetooth 5.0
    Dealer OptionDH240T: Peel-off module; Guillotine cutter (full cut and partial cut); 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module; Bluetooth 5.0 module; Linerless with cutter (full cut); Linerless with tear; DH240THC: Peel-off module; Guillotine cutter (full cut and partial cut); 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module
    User OptionDH240T: External label roll mount; KP-200 Plus keyboard display unit; 10mm narrow media adaptor; PDF Print Dongle; BP-4000 smart battery station; DH240THC: External label roll mount; KP-200 Plus keyboard display unit; 10mm narrow media adaptor
    General
    TypeDesktop
    • Health careTSC DH240T / DH240THC Desktop Barcode Printer can be used in Health care Industry
    • RetailsTSC DH240T / DH240THC Desktop Barcode Printer can be used on Retail Stores
    • LogisticsTSC DH240T / DH240THC Desktop Barcode Printer Mostly used in Logistics Industry for Asset Management and Tracking
    • ManufacturingManufacturing Industry uses TSC DH240T / DH240THC Desktop Barcode Printer
    • GovernmentTSC DH240T / DH240THC Desktop Barcode Printer used in various Government Sectors
    • Travel & LeisureTSC DH240T / DH240THC Desktop Barcode Printer for Travel & Leisure
    • Special MaterialsTSC DH240T / DH240THC Desktop Barcode Printer for Special Materials
