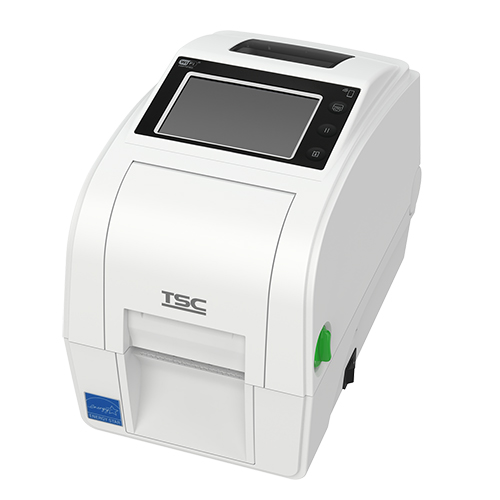

TSC TH320T / TH320THC Desktop Barcode Printer in Sikkim
TSC TH320T / TH320THC Desktop Barcode Printer TSC TH320T / TH320THC Desktop Barcode Printer TSC TH320T / TH320THC Desktop Barcode Printer

Small labels still need to be sharp and durable, and the TH320T / TH320THC delivers thermal transfer quality in a narrow footprint that fits beside a billing terminal or nurse station. The touchscreen simplifies calibration and troubleshooting, and TSC Standalone Creator can put favourite templates on screen for PC-free printing.

Indian retailers use this class of printer for jewellery tags, cosmetic and pharma labels, while hospitals use the HC model for wristbands and specimen labels. Auto-switch language emulation and remote management tools make it easy to replace older 2-inch printers.

Barcode Vault is a sales and service provider for TSC barcode printers and printheads across India. For the best price call 8527522688 or mail us at gm@indianbarcode.com.

  • Key Features

    • Print resolution: 12 dots / mm (300 dpi)
    • Max. print speed: 152mm (6") / second
    • Max. print width: 56.9mm (2.24")
    • Wired connectivity: Ethernet; Serial RS-232; USB; USB Host
    • Thermal transfer and direct thermal printing
    • Colour LCD touchscreen with buttons
    • HC version with antimicrobial, disinfectant-ready casing
    • IEC 60601-1 compliant power supply on HC version
    • Auto-switch printer language emulation

    Applications

    • Jewellery tags
    • Patient wristbands
    • Specimen labels
    • Cosmetic and pharma labels
    • Small retail labels
  • Printing
    Resolution12 dots / mm (300 dpi)
    Printing MethodThermal Transfer & Direct Thermal
    Max. Print Speed152mm (6") / second
    Max. Print Width56.9mm (2.24")
    Max. Print Length11,430mm (450")
    Physical
    EnclosureTH320T: Clamshell with double-walled plastic; TH320THC: Clamshell with double-walled plastic; Disinfectant-ready plastic, designed with an easy-to-clean surface and a sealed button interface; Antibacterial enclosure
    Physical Dimension146mm (W) x 179mm (H) x 231mm (D) / 5.75" (W) x 7.05" (H) x 9.09" (D)
    Weight1.8kg (3.97lbs)
    Hardware
    ProcessorTH320T: 32-bit RISC CPU
    Memory128 MB Flash memory; 128 MB SDRAM; microSD card reader for Flash memory expansion, max. 512 GB, FAT32 and exFAT only
    Operation Switch, Button, LED/LCDTH320T: 1 power switch; 1 feed button; 1 pause button; 1 reprint button; 3.5" color touch display, 480 x 320 pixel; TH320THC: 1 reprint button; 3.5" color touch display, 480 x 320 pixel
    SensorsTH320T: Transmissive gap sensor; Black mark reflective sensor (position adjustable); Ribbon end sensor; Head open sensor; TH320THC: Ribbon end sensor; Head open sensor
    Real Time ClockStandard
    Connectivity
    InterfaceTH320T: USB 2.0; RS-232; USB Host; Internal Ethernet, 10/100 Mbps; 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module (dealer option); Bluetooth 5.0 (dealer option); MFi Bluetooth 5.0 (factory option); TH320THC: 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module (dealer option); Bluetooth 5.0 (dealer option); MFi Bluetooth 5.0 (factory option)
    Hardwire ConnectivityEthernet; Serial RS-232; USB; USB Host
    Wireless ConnectivityBluetooth; Bluetooth MFi; Wi-Fi; Wi-Fi with Bluetooth
    Enterprise Printer ManagementTSC Console; SOTI Connect (license required)
    Media & Ribbon
    Label Roll Capacity127mm (5") OD
    Ribbon90m long, max. OD 37mm, 0.5" core (ink coated outside)
    Ribbon Width56mm - 58mm (2.20" - 2.28")
    Media TypeContinuous, die-cut, black mark, fan-fold, notch (outside wound)
    Media Width15mm - 60mm (0.59" - 2.36")
    Media Thickness0.06mm - 0.19mm (2.36mil - 7.48mil)
    Media Core Diameter25.4mm - 38.1mm (1" - 1.5")
    Label Length5mm - 11,430mm (0.20" - 450")
    Fonts, Barcodes & Language
    Internal Font8 alpha-numeric bitmap fonts; Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font; ARIALUNI.TTF Unicode true type font
    Barcode1D barcode Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS; 2D barcode TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode), rMQR Code
    Font & Barcode Rotation0, 90, 180, 270 degree
    Printer LanguageTSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
    Power
    PowerTH320T: External universal switching power supply; Input: AC 100-240V, 1.5A, 50-60Hz; Output: DC 24V, 2.5A, 60W; TH320THC: External universal switching power supply; IEC 60601-1 certified power supply; Input: AC 100-240V, 2.0A, 50-60Hz; Output: DC 24V, 2.5A, 60W
    Environment & Compliance
    Environment ConditionOperation: 0°C to 40°C (32°F to 104°F), 25% - 85% non-condensing; Storage: -40°C to 60°C (-40°F to 140°F), 10% - 90% non-condensing
    Safety RegulationTH320T: Printer: CB, FCC Class B, IC , CTÜVUS, NoM, CE Class B, UKCA, EAC, CCC, RCM, BSMI, Energy Star 3.2; Wi-Fi/Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, RCM, NCC; MFi Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, RCM, NCC; TH320THC: Printer: CB, FCC Class B, IC , CTÜVUS, CE Class B, UKCA, EAC, CCC, BIS, RCM, Energy Star 3.2; Wi-Fi/Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, WPC, RCM; MFi Bluetooth: FCC, IC, CE, UKCA, FAC, SRRC, RCM
    Environmental ConcernComply with RoHS, REACH, WEEE, China RoHS
    Warranty & Options
    AccessoriesTH320T: Quick start guide; USB cable; Power cord; External universal switching power supply; 0.5" ribbon paper core; TH320THC: External universal switching power supply; 0.5" ribbon paper core
    Limited WarrantyPrinter: 2 years; Printhead: 25km (1 million inches) or 12 months which comes first; Platen: 50km (2 million inches) or 12 months which comes first
    Factory OptionMFi Bluetooth 5.0
    Dealer OptionTH320T: Peel-off module; Guillotine cutter (full cut and partial cut); Care label cutter (full cut); 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module; Bluetooth 5.0 module; TH320THC: Peel-off module; Guillotine cutter (full cut and partial cut); 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 5.0 combo module; Bluetooth 5.0 module
    User OptionTH320T: External label roll mount; KP-200 Plus keyboard display unit; 10mm narrow media adaptor; PDF Print Dongle; BP-4000 smart battery station; TH320THC: PDF Print Dongle; BP-4000 smart battery station
    General
    TypeDesktop
    • Health careTSC TH320T / TH320THC Desktop Barcode Printer can be used in Health care Industry
    • RetailsTSC TH320T / TH320THC Desktop Barcode Printer can be used on Retail Stores
    • LogisticsTSC TH320T / TH320THC Desktop Barcode Printer Mostly used in Logistics Industry for Asset Management and Tracking
    • ManufacturingManufacturing Industry uses TSC TH320T / TH320THC Desktop Barcode Printer
    • GovernmentTSC TH320T / TH320THC Desktop Barcode Printer used in various Government Sectors
    • Travel & LeisureTSC TH320T / TH320THC Desktop Barcode Printer for Travel & Leisure
    • Special MaterialsTSC TH320T / TH320THC Desktop Barcode Printer for Special Materials
