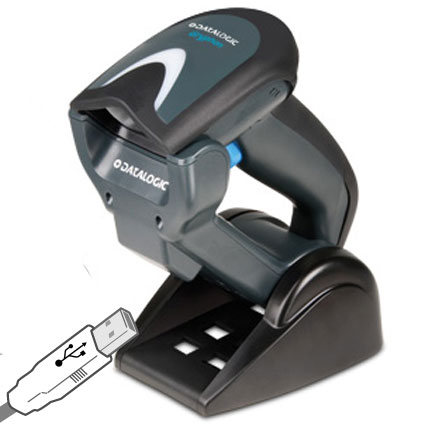

Datalogic GBT4400 2D Barcode Reader
The Datalogic Gryphon I GBT4400 2D imager is the new area imager for general purpose scanning requirements in a wide variety of application environments including Retail, Light Manufacturing, Document Handling, Access Control, Entertainment, Health care and Transportation.
  •

    • Bluetooth Wireless Technology with up to 30 m / 98 ft range
    • Omnidirectional reading
    • Advanced motion tolerance optics: 60 frames per second
    • Image Capture
    • Reads 1D, 2D and Postal codes plus stacked and composite codes like PDF417 and GS1 DataBar
    • Multi-interface options: RS-232 / IBM 46XX / USB or RS-232 / USB / Keyboard Wedge / Wand
    • Datalogic’s patented ‘Green Spot’ for good-read feedback plus the 4-dot Aimer
    • Point-to-point and multi-point transmission
    • Two-position cradle with Scan-While-Charging capability
    • Batch Mode capability: +1200 codes stored in memory
    • User-replaceable, long lasting lithium-ion battery
    • Drop resistance to 1.8 m / 5.9 ft
    • USB Certified Kits Available
  • General

    Brand
    Datalogic
    Series
    GBT4400
    Part#
    GBT4400-WH
    Form Factor
    Handheld
    Connectivity
    Cordless
    Scan Engine
    2D Area Imager

    Connectivity

    Included Cables
    Scanner Only - No Cable
    Interfaces Supported
    Multi-Interface
    Cordless Type
    Bluetooth

    Scan Performance

    Light Source
    650 nm Visible LED
    Resolution
    High density (Hd)
    - 1D Linear: 0.077 mm / 3 mils
    - Data Matrix: 0.127 mm / 5 mils
    - PDF417: 0.102 mm / 4 mils

    Standard Range (sR)
    - 1D Linear: 0.102 mm / 4 mils
    - Data Matrix: 0.178 mm / 7 mils
    - PDF417: 0.127 mm / 5 mils
    Pitch
    ±40 degree
    Roll
    ±360 degree
    Yaw
    ±40 degree
    Print Contrast Ratio (Minimum)
    25%

    Electrical

    Battery
    Battery Type: Lithium-Ion, 2100 mAh;
    Charge Time: External Power: 4 Hours @ 12 VDC;
    Reads per Charge: 50,000
    Input Voltage
    4.5 - 14.0 VDC
    Current
    Charging (Typical): < 8 W;
    Operating (Typical): < 2.5 W @ 5 VDC;
    Standby/Idle (Typical): < 2.5 mA @ 5 VDC

    Mechanical

    Color
    White
    Dimensions
    7.25" x 3.90" x 2.20"
    Weight
    0.54 lb.

    Features

    Features
    Bluetooth Wireless Technology with up to 30 m / 98 ft range

    Omnidirectional reading

    Advanced motion tolerance optics: 60 frames per second

    Image Capture

    Reads 1D, 2D and Postal codes plus stacked and composite codes like PDF417 and GS1 DataBar

    Multi-interface options: RS-232 / IBM 46XX / USB or RS-232 / USB / Keyboard Wedge / Wand

    Datalogic’s patented ‘Green Spot’ for good-read feedback plus the 4-dot Aimer

    Point-to-point and multi-point transmission

    Two-position cradle with Scan-While-Charging capability

    Batch Mode capability: +1200 codes stored in memory

    User-replaceable, long lasting lithium-ion battery

    Drop resistance to 1.8 m / 5.9 ft

    USB Certified Kits Available

    EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
    Drop
    5.9 ft
    Ruggedness
    General Purpose
  • Healthcare icon Datalogic GBT4400 2D Barcode Reader can be used in Health care Industry
    Retails icon Datalogic GBT4400 2D Barcode Reader can be used on Retail Stores
    Logistics icon Datalogic GBT4400 2D Barcode Reader Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses Datalogic GBT4400 2D Barcode Reader
    Government icon Datalogic GBT4400 2D Barcode Reader used in various Government Sectors
    Travel & Leisure icon Datalogic GBT4400 2D Barcode Reader for Travel & Leisure
    Special Materials icon Datalogic GBT4400 2D Barcode Reader for Special Materials
