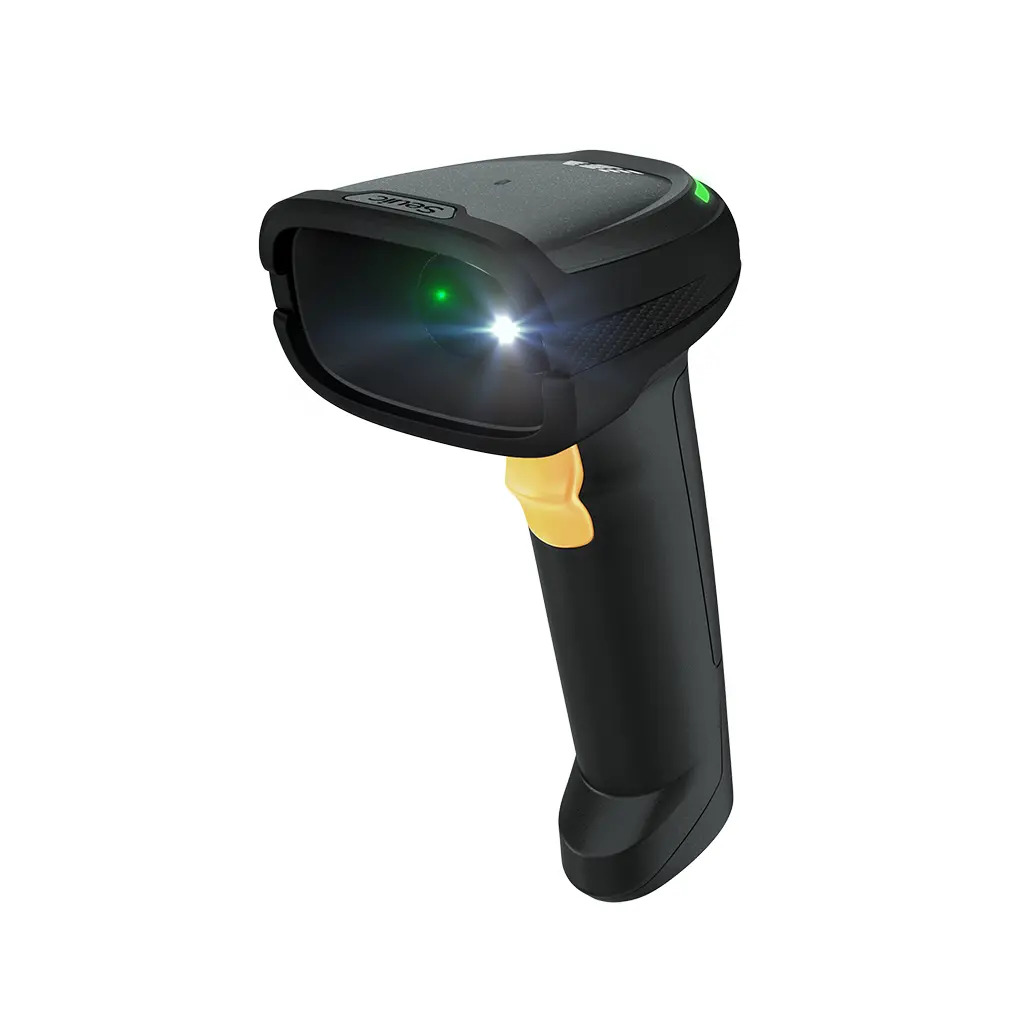

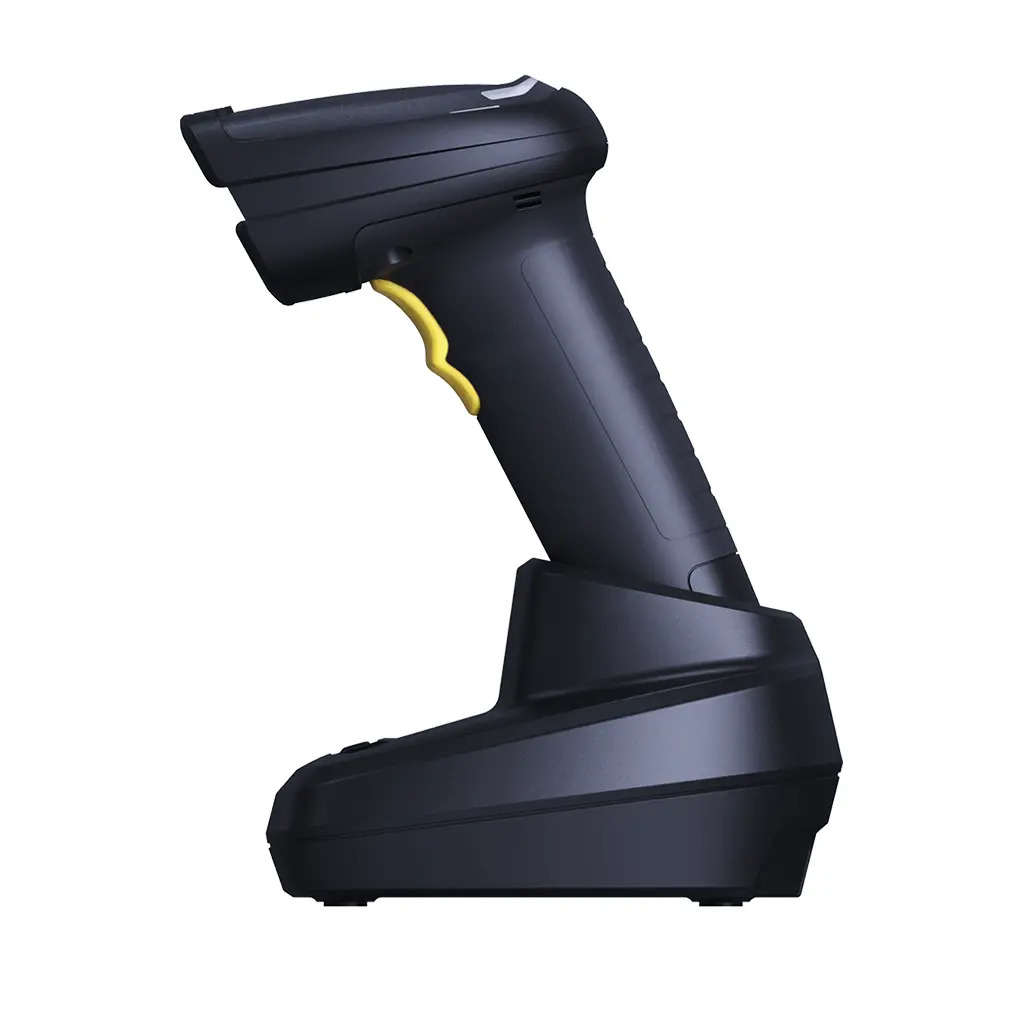

Seuic HS220C Area-imaging Wireless Barcode Scanner

Seuic HS220C Area-imaging Wireless Barcode Scanner

  • Image Sensor: 1280 x 1024
  • Illumination: White
  • Resolution: 1D 3 mil; 2D 5 mil
  • Environmental Sealing: IP51
  • Battery Capacity: Rated Capacity:2150mAh; Typical Capacity: 2600mAh
  • Drop Specifications: 4.9 ft./1.5m drops to concrete

HS220C is a versatile wireless scanner for manufacturing, retail, e-commerce, and logistics. It performs well in a variety of scenarios such as automated factory assembly, retail store checkout / inventory, and logistics and warehousing, especially for paper barcodes, wrinkled and distorted commodity codes, and laser-engraved barcodes on printed circuit boards or metal surfaces, HS220C can provide excellent decoding performance and user experience.

    • High resolution optical lens for superior scanning of tiny dense codes.

    • Scan any barcode on any medium, printed on plastic and metal electronic subcomponents such as PCB boards, memory chips and more.
  • Image Sensor
    1280 * 1024 COMS sensor with global shutter
    Camera Option
    High density
    Standard Range
    Illumination LEDs
    White
    Aiming
    Green LED
    Sensor Speed
    60fps
    Support Symbologies
    1D: UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5.
    2D: PDF417, MicroPDF417, Data Matrix, QR Code, MicroQR, etc.
    Scan Angle
    Pitch angle ±60° and skew angle ±55°
    Scan Density
    1D code: 3mil
    2D code: 5mil
    Standard Range for Typical Symbols
    Refer to the specifications for detailed parameters
    Vibration Motor
    Support
    Communication Interface
    RS232, USB keyboard, USB COM
    Dimension
    6.5 in. L × 2.7 in . W × 4.2 in. H
    166.2 mm L × 68.5 mm W × 105.5mm H
    Weight
    7.1oz / About 200g
    Operating Temperature
    32 °F to 122 °F / 0°C to 50°C
    Storage Temperature
    -4 °F to 158 °F / -20°C to 70°C
    Humidity
    5% to 95% RH non-condensing
    Environmental Sealing
    IP54 (Water and Dust Resistant)
    Light Levels
    0 to 100,000 Lux
    Drop Specification
    50 rounds of 4.9 ft. / 1.5m
    Impact Specification
    2000 rounds of 0.5m tumble
    Shell Material
    Highly resistant industrial plastic
    Battery Capacity
    Rated Capacity: 2150mAh
    Typical Capacity: 2600mAh
    Number of Scans
    40,000
    Charge Time from Empty to Full
    5 ~ 6 hours over USB
    ESD Protection
    ±15kV Air discharge, ±8kV direct discharge
    Certificates
    CE, FCC, RoHS, UN38.3
