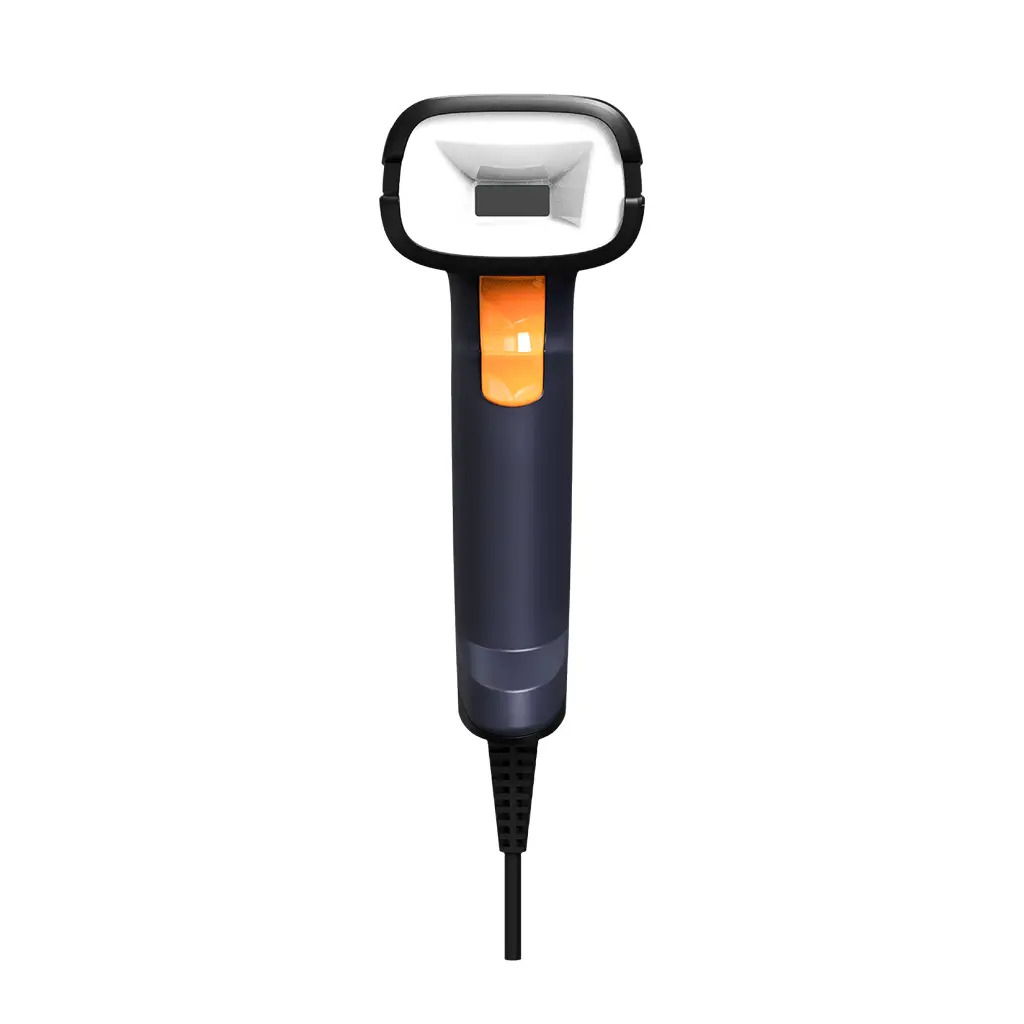

Seuic HS305DP Industrial Wired Barcode Scanner

HS305DP Industrial Wired Barcode Scanner

  • Image Sensor: 1280 x 1080 COMS sensor with global shutter
  • Illumination LEDs: Intelligent adjustable diffuse light (red/white/blue)
  • Scan Density: 1D code-3mil; 2D code-5mil
  • Communication Interface: RS232, USB keyboard, USB COM
  • Environmental Sealing: IP54 (Water and Dust Resistant)
  • Drop Specification: Operational after 50 drops from 6 ft. (1.8 m) to concrete

An industrial handheld scanner, new equipped with unmatched AI algorithm, dual-core driven, bring decoding ability to the next level, can identify, positioning and decode DPM barcodes in manufacture industrial easily, like as distortion, reflective, curved, blurred, low contrast code more effectively and smoothly, where improve your using experience at the same time.

    • Dual core fast processing with AI capability.
    • Three-direction LED reminder, friendly interaction.
  • Image Sensor
    1280 * 1080 COMS sensor with global shutter
    Camera Option
    DPM
    Illumination LEDs
    Intelligent adjustable diffuse light (red/white/blue)
    Aiming
    Cross - shape laser aimer
    Sensor Speed
    60fps
    Support Symbologies
    1D: UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5
    Scan Angle
    Pitch angle ±60° and skewangle ±55°
    Scan Density
    1Dcode: 3mil
    2Dcode: 5mil
    Standard Range for Typical Symbols
    Refer to the specifications for detailed parameters
    Communication Interface
    RS232, USB keyboard, USB COM
    Dimension
    166.2mm(L) * 68.5mm(W) * 105.5mm(H)
    6.5 in. L × 2.7 in . W × 4.2 in. H
    Weight
    5.7oz±0.1oz / 162g±3g
    Operating Temperature
    32 °F to 122 °F / 0°C to 50°C
    Storage Temperature
    -4 °F to 158 °F / -20°C to 70°C
    Humidity
    5% to 95% RH non-condensing
    Environmental Sealing
    IP54 (Water and Dust Resistant)
    Light Levels
    0 to 100,000 Lux
    Drop Specification
    Operational after 50 drops from 6 ft. (1.8 m) to concrete
    Impact Specification
    2000 rounds of 0.5m tumble
    Shell Material
    Highly resistant industrial plastic
    ESD Protection
    ±15kV Air discharge; ±8kV direct discharge
    Certificates
    CE, FCC, RoHS
  • Healthcare icon Seuic HS305DP Industrial Wired Barcode Scanner can be used in Health care Industry
    Retails icon Seuic HS305DP Industrial Wired Barcode Scanner can be used on Retail Stores
    Logistics icon Seuic HS305DP Industrial Wired Barcode Scanner Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses Seuic HS305DP Industrial Wired Barcode Scanner
    Government icon Seuic HS305DP Industrial Wired Barcode Scanner used in various Government Sectors
    Travel & Leisure icon Seuic HS305DP Industrial Wired Barcode Scanner for Travel & Leisure
    Special Materials icon Seuic HS305DP Industrial Wired Barcode Scanner for Special Materials
