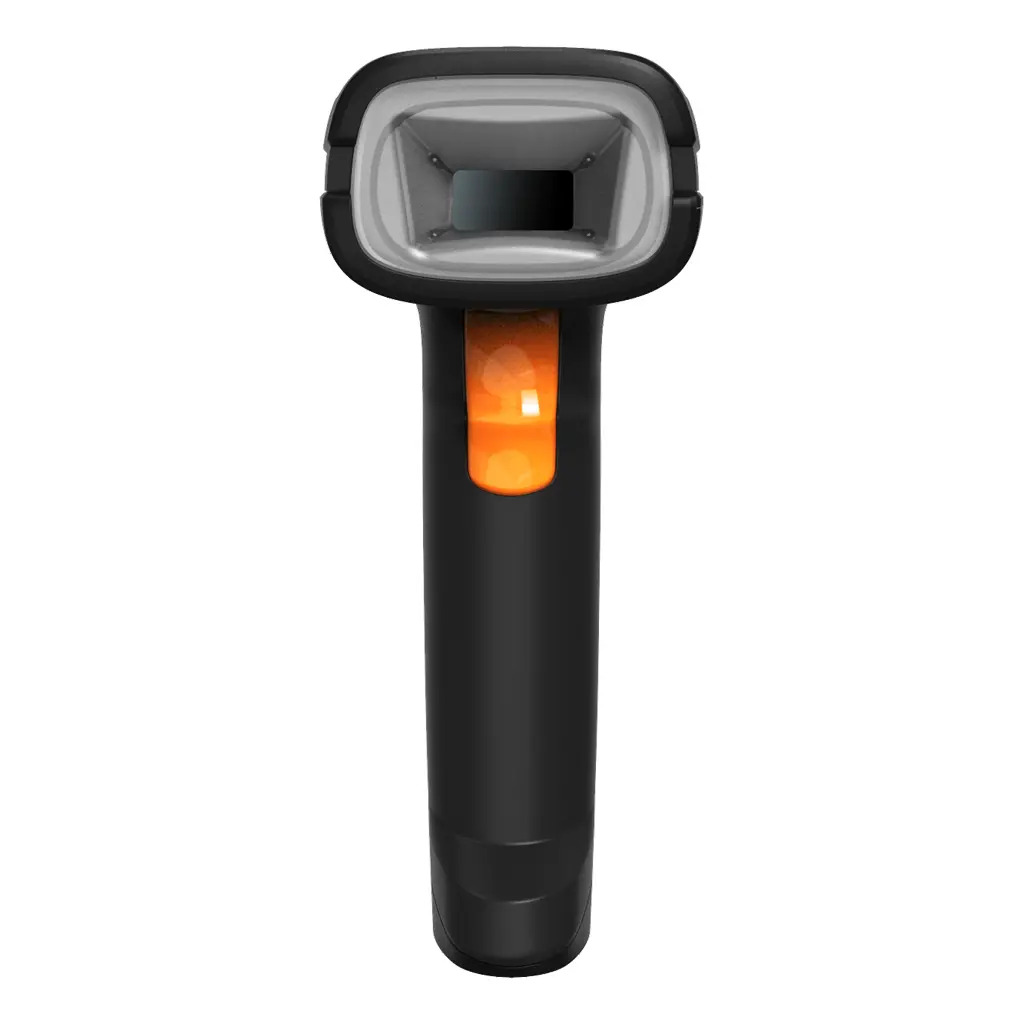

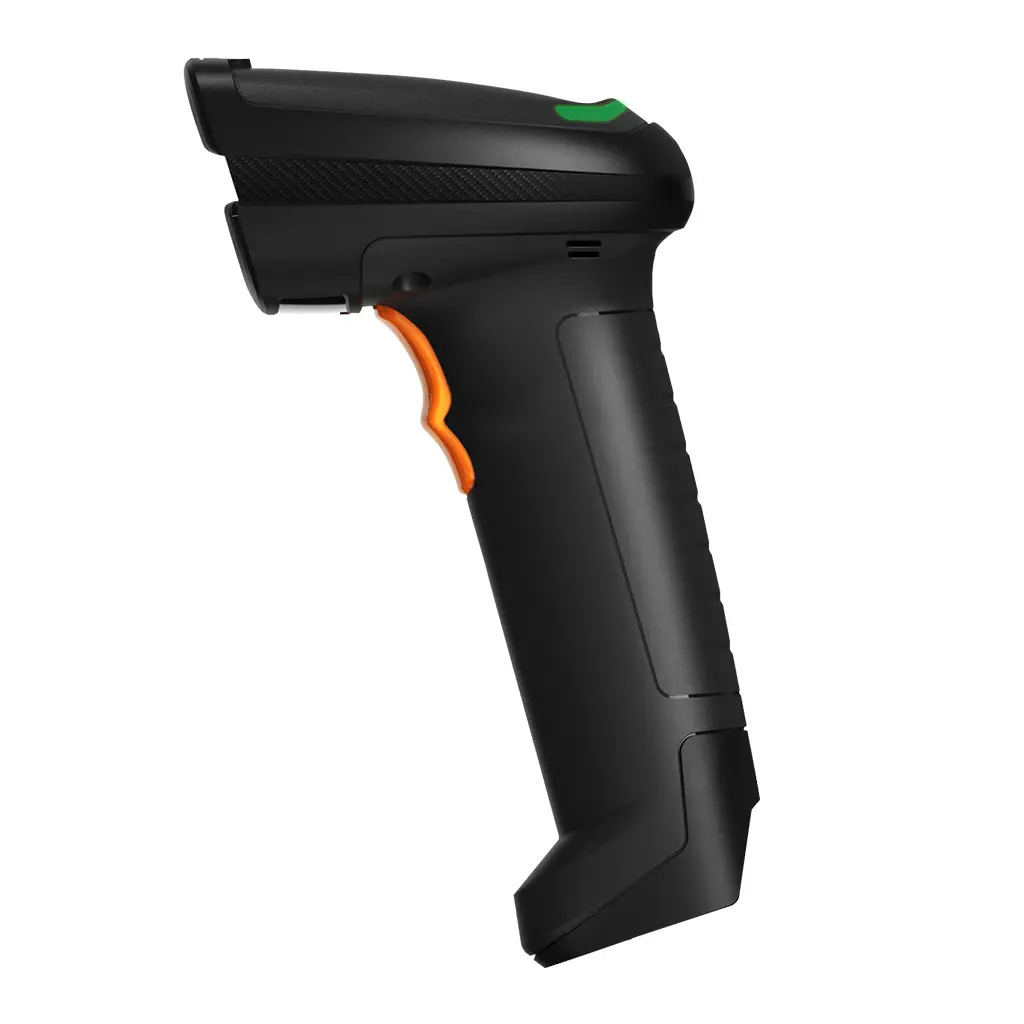

Seuic HS325DP Industrial Wireless Barcode Scanner

The Seuic HS325DP Industrial Wireless Barcode Scanner, distributed by Barcode Vault, is a next-generation industrial-grade scanner built for high-performance DPM (Direct Part Mark) decoding. Powered by a dual-core processor and advanced AI recognition algorithm, it effortlessly reads barcodes with distortion, deformation, blur, defects, or low contrast, ensuring smooth and precise scanning across all industrial environments.

With a 1280 × 1080 image sensor, intelligent adjustable lighting (red/white/blue), and IP54-rated protection, the HS325DP is designed to perform in demanding conditions. Its wireless design, 3150mAh high-capacity battery, and rugged 1.8m drop resistance make it ideal for manufacturing, logistics, and warehouse automation.

Barcode Vault, India’s leading importer and distributor of Seuic barcode scanners, provides genuine products, expert technical support, and the best prices nationwide.

Call: 9717122688 / 9810822688
Email: gm@indianbarcode.com
Website: www.barcodevault.com

    • High resolution optical lens for superior scanning, ergonomic design.

    • Dual core fast processing and AI recognition capability with leading performance.

    • Master on decoding DPM barcode regarding distortion, engraving, blur, dot-peen, defect and low-contrast.
  • Category Specification
    Image Sensor 1080 × 1280 CMOS sensor with global shutter
    Camera Option DPM (Direct Part Mark)
    Illumination LEDs Intelligent adjustable diffuse light (red/white/blue)
    Aiming Cross-shape laser aimer
    Sensor Speed 60 fps
    Supported Symbologies 1D: UPC/EAN, Code128, GS1-128, Code 39, Code 93, Interleaved 2 of 5, Codabar, etc.2D: PDF417, MicroPDF417, Data Matrix, QR Code, Micro QR, etc.
    Scan Angle Pitch ±60°, Skew ±55°
    Scan Density 1D: 3 mil, 2D: 5 mil
    Standard Range for Typical Symbols Refer to specifications for detailed parameters
    Radio Range Direct line of sight: Minimum 300 ft. (100 m)
    Vibration Motor Supported
    Communication Interface RS232, USB Keyboard, USB COM
    Dimensions (Scanner) 166.2 mm (L) × 68.5 mm (W) × 105.5 mm (H)
    Weight (Scanner) 226 g ±3 g (7.9 oz ±0.1 oz)
    Operating Temperature 0°C to 50°C (32°F to 122°F)
    Storage Temperature -20°C to 70°C (-4°F to 158°F)
    Humidity 5%–95% RH non-condensing
    Environmental Sealing (Scanner) IP54 (Water and Dust Resistant)
    Light Levels 0–100,000 Lux
    Drop Specification Operational after 50 drops from 6 ft. (1.8 m) to concrete
    Impact Specification 2000 rounds of 0.5 m tumble
    Shell Material (Scanner) Highly resistant industrial plastic
    Battery Capacity Rated: 3150 mAh / Typical: 3500 mAh (Removable)
    Battery Performance Up to 100,000 continuous scans (2 scans/sec)
    Charge Time 6–8 hours via USB / 2.5 hours via external 5V power
    Maximum Storage (Batch Mode) 5000 scans
    ESD Protection (Scanner) ±15kV Air discharge, ±8kV Direct discharge
    Certificates (Scanner) CE, FCC, RoHS, UN38.3
    Cradle – Rated Charging Power USB: 2.5W
    Cradle Dimensions 219.3 mm (L) × 88.4 mm (W) × 62.3 mm (H)
    Cradle Weight 179 g ±3 g
    Cradle Operating Temperature 0°C to 50°C
    Cradle Storage Temperature -20°C to 70°C
    Cradle Humidity 5%–95% RH non-condensing
    Cradle Environmental Sealing IP51 (Water and Dust Resistant)
    Cradle Mechanical Shock 50 drops from 3.9 ft. (1.2 m)
    Cradle Shell Material Highly resistant industrial plastic
    Cradle ESD Protection ±15kV Air discharge, ±8kV Direct discharge
    Cradle Certificates CE, FCC, RoHS
