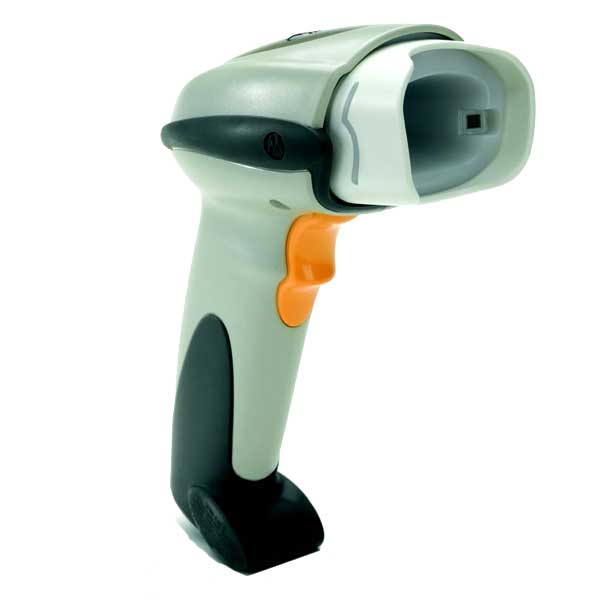

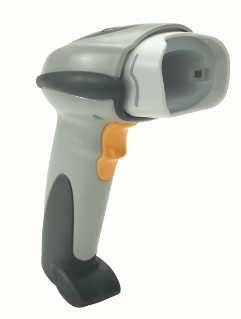

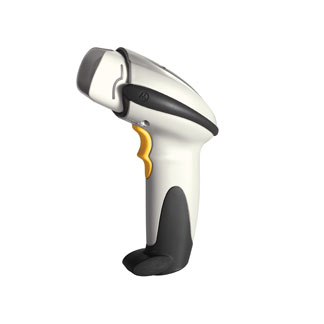

Zebra DS6707 DP HandHeld Barcode Scanner

The Symbol DS6707-DP is a premier general purpose scanner, offering the maximum in data capture flexibility. The zebra DS6707-DP is able to capture images and read virtually all 1-D and 2-D barcodes and direct part marks (DPM) — including the most challenging mark, dot peen.

  •  1.3 Megapixel imaging (1280 x 1024)

    High resolution image sensor for robust image capture and barcode scanning; captures 1-D barcodes down to 3 mil density and 2-D barcodes down to 2mm x 2mm and as dense as 4 mils

    Support for all major 1-D, PDF, postal, 2-D and DPM symbologies
    Delivers application flexibility; eliminates need for multiple devices — and associated costs

    Integrated advanced illumination system
    Multiple lighting modes and an integrated diffuser enable the capture of direct part marks on literally any surface, including reflective, irregular and curves; enables capture of low and high contrast marks

    RSM (Remote Scanner Management) Ready
    Reduces total cost of ownership by enabling remote, network-based device management

    Integrated viewfinder, 360° omni-directional scanning, laser “bulls-eye” aiming pattern
    Facilitates accurate, first time DPM and barcode capture

    Text enhancement technology
    Ensures legibility of text in scanned documents

    6 ft./1.8m drop specification, tempered glass exit window
    Designed to endure the rigors of everyday use for maximum reliability and uptimes; reduces downtime and TCO

    Multiple on-board interfaces; universal cable compatible
    Easy to install; future-proof — today’s scanner can connect to tomorrow’s host.

    Optional hands-free Intellistand
    Enables presentation scanning and automatic switching between hands-free and handheld modes

  •  Imaging characteristics

    Image resolution (pixels)
    1.3 Megapixel: 1280 pixels H x 1024 pixels V

    Performance characteristics

    Decode capability
    1-D/2-D/PDF417, DPM

    Interfaces supported
    RS-232, USB

    Pitch1
    ±65°

    Roll (Tilt)2
    360°

    Skew (Yaw)3
    ±60°

    Technology
    Imager

    Depth of field
    30° V x 40° H

    Scan pattern
    Omnidirectional

    Physical characteristics

    Colour
    Cash register white

    Dimensions
    6.55 in. H x 5.08 in. L x 2.82 in. W / 16.6 cm H x 12.9 cm L x 7.1 cm W

    Voltage and current4
    5 +/-10%VDC @ 350 mA

    Corded
    Yes

    Handheld
    Yes

    Weight
    7.4 oz. (209 gm)

    Regulatory Specifications

    EMI/RFI
    IEC 60601-1-2, FCC Part 15 Class B, ICES 003 Class B

    Environmental
    RoHS Directive 2002/95/EEC

    Electrical safety
    UL 60950-1, C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

    Laser/LED safety
    EN 60825-1, IEC 60825-1, 21CFR1040.10

    User Environment

    Ambient lighting tolerance
    Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting

    Operating temperature
    32° to 122° F / 0° to 50° C

    Drop specifications
    Withstands multiple 6 ft. (1.8m) drops to concrete

    Storage temperature
    -40° to 158° F / -40° to 70° C

  • Healthcare icon Zebra DS6707 DP HandHeld Barcode Scanner can be used in Health care Industry
    Retails icon Zebra DS6707 DP HandHeld Barcode Scanner can be used on Retail Stores
    Logistics icon Zebra DS6707 DP HandHeld Barcode Scanner Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses Zebra DS6707 DP HandHeld Barcode Scanner
    Government icon Zebra DS6707 DP HandHeld Barcode Scanner used in various Government Sectors
    Travel & Leisure icon Zebra DS6707 DP HandHeld Barcode Scanner for Travel & Leisure
    Special Materials icon Zebra DS6707 DP HandHeld Barcode Scanner for Special Materials
