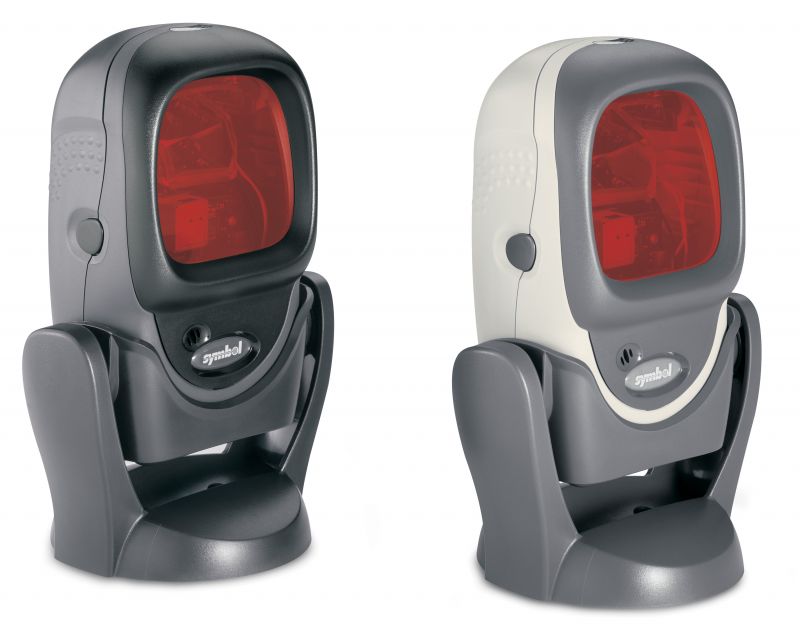

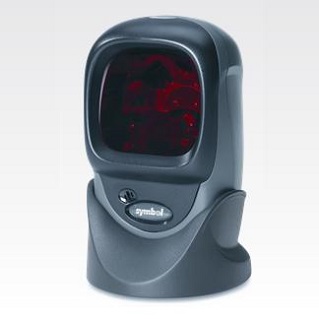

Zebra LS9208i Barcode Scanner

The Zebra LS9208i high-speed barcode scanner saves time and delivers versatility, switching easily between handheld and hands-free operation. The 100-line rastering omnidirectional scan pattern lets you quickly capture codes no matter how they are presented, and high performance optics enables superior data capture on a wide range of barcodes -- from 13 mil (100% UPC) to 4 mil (Code 39). Its new remote scanner management capability helps reduce costs by enabling centralized remote management of devices. Its small footprint and integrated Checkpoint Electronic Article Surveillance (EAS) antenna save counter space. To ensure compatibility with new standards, the device supports the GS1 DataBar symbology and 14-digit Global Trade Item Number (GTIN) barcodes


  • Scan virtually any bar code on any medium; supports the technology your customers are embracing — mobile bar codes



    New small footprint

    Most compact device in its class, fits in the most space constrained areas, yet offers flexibility of a much larger scanner — the large high-mounted exit window enables scanning of even taller items



    New sleek design

    Perfect in the most design conscious environments



    Handheld and hands-free modes

    Dual mode functionality saves time; keeps lines moving and minimizes wait times; eliminates the need to lift heavy items, reducing the opportunity for injury



    Picklist mode

    Select and scan a single bar code from a bar code menu or “picklist” — ideal for items that are too small for bar code labels such as nuts and bolts in a hardware store to tiny cosmetic brushes



    Driver’s license parsing (optional)

    Captures the information you specify from driver’s licenses to enable fast auto-population of loyalty and credit card applications, increasing enrollment

  • 1DUPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic,Code 32 (Italian Pharmacode), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 DataBar Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded,Expanded Stacked)
    PDF417 (and variants)PDF417 (Standard, Macro), MicroPDF417(Standard, Macro), Composite Codes (CC-A,CC-B, CC-C)
    2D

    TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)

    PostalU.S. Postnet and Planet, U.K. Post, Japan Post, Australian Post, Netherlands KIX Code, Royal Mail 4 State Customer, UPU FICS 4 State Postal, USPS 4CB, Canadian Post (Postbar)
    Nominal Working Range

    Code 39 – 5 mil: 0 – 4.5 in. (0 – 11.4 cm)

    UPC/EAN – 10 mil (80%): 0 – 8.5 in. (0 – 21.6 cm)

    UPC/EAN – 13 mil (100%): 0 – 10.5 in. (0 – 26.7 cm)

    PDF417 – 6.6 mil: 0 – 3.8 in. (0 – 9.6 cm)

    Datamatrix – 10 mil: 0 – 4.7 in. (0 – 11.9 cm)

    Minimum Resolution

    Code 39 – 4 mil

    UPC – 7.8 mil (60%)

    PDF417 – 5 mil

    Datamatrix – 7.5 mil

    QR Code – 7.5 mil

  • Healthcare icon Zebra LS9208i Barcode Scanner can be used in Health care Industry
    Retails icon Zebra LS9208i Barcode Scanner can be used on Retail Stores
    Logistics icon Zebra LS9208i Barcode Scanner Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses Zebra LS9208i Barcode Scanner
    Government icon Zebra LS9208i Barcode Scanner used in various Government Sectors
    Travel & Leisure icon Zebra LS9208i Barcode Scanner for Travel & Leisure
    Special Materials icon Zebra LS9208i Barcode Scanner for Special Materials
