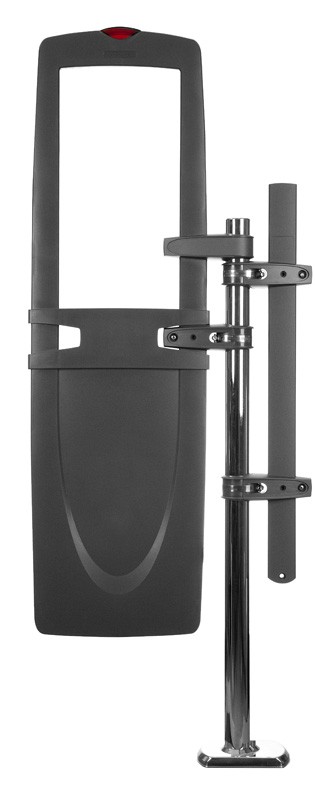

Ultra Lane 1080 AM Detection System
The Ultra Lane AMS-1080 detection system consists of an AMS-1080 controller, up to four AMS-1080 antennas, and up to two pairs of Ranger ferrite antennas.
  • The Ultra Lane AMS-1080 detection system consists of an AMS-1080 controller, up to four AMS-1080 antennas, and up to two pairs of Ranger ferrite antennas.

    The detection system deters theft in up to four food store checkout aisles (each aisle independently supported) by activating an alarm when it detects the unique response of an active Ultra Max security label.

    To detect a label, AMS-1080 antenna(s) connected to the controller emit a magnetic field close to the label's natural frequency causing it to vibrate at the frequency of the field. When the field is removed, energy in the tag/label dissipates resulting in a tag signal.

    The AMS-1080 antenna(s)—and Ranger antennas, if used—pick up incoming signals and send them to the controller which determines if they are indicative of a tag signal. If it is, then the controller activates an audio/visual alarm at the top of the AMS-1080 antenna that detected the label.

    When the AMS-1080 antenna is positioned between two adjacent checkout aisles, each side of the visual alarm can be set to light only in the aisle where the label was detected.

    • No Power On Switch

    • No Antenna Tuning

    • No Alarm Mapping

    • Auto Synchronization

    • Jammer Detection

      A Jammer is an illegal device that is being used by shoplifter teams to prevent the normal detection of tags and labels. It transmits a continuous 58kHz signal and temporarily inhibits the operation of our receivers.

    •
      Jammer detection recognizes the presence of such a device and activates a special alarm to notify store personnel.

    • Tags too Close Feature


    • Helps prevent false alarms.

      With this function selected, the red lamp on top of the antenna blinks twice every four seconds for one minute when the system detects one or more stationary tags or labels that are too close to it.

      The lamp goes out when these tags/labels are moved away from the system. It takes one second to reset and items must be kept at least 1.5m (5ft.) away from all sides of the antenna.
