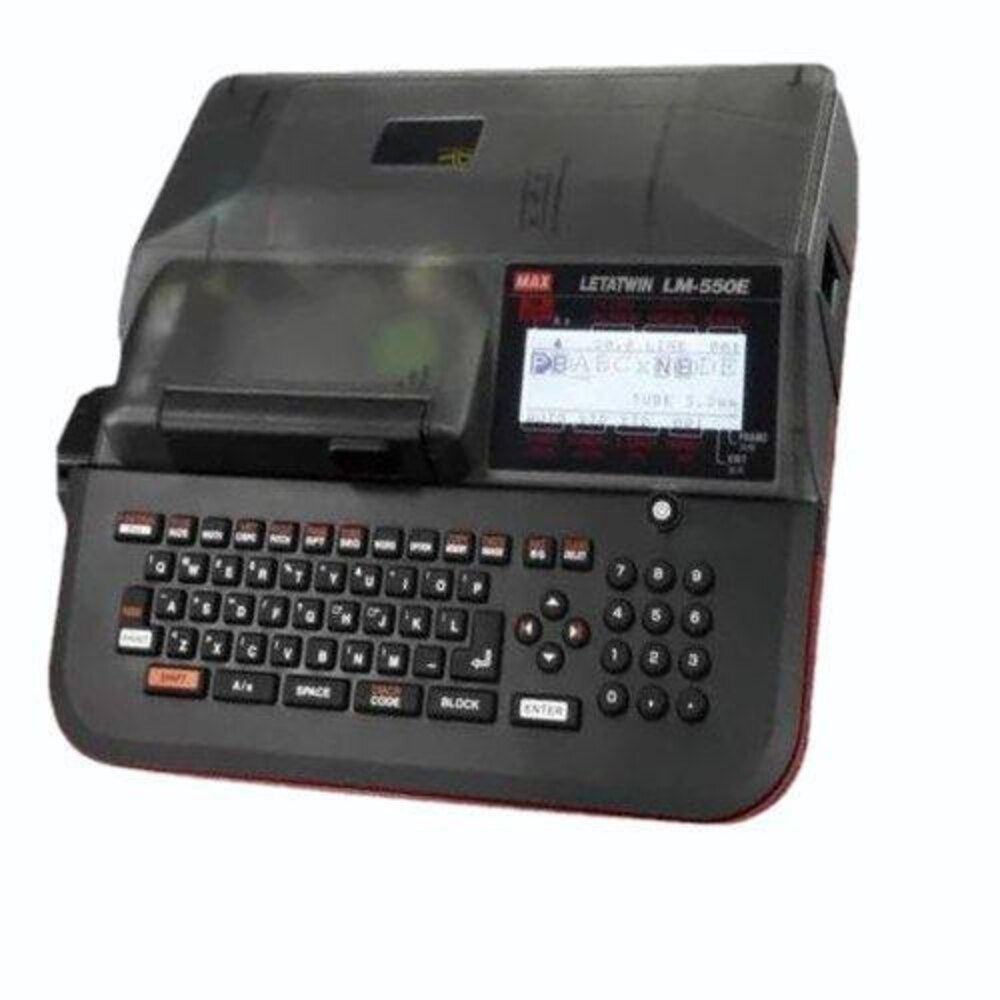

LM-550E Ferrule Printing Machine

The LM-550E is a compact, high-precision ferrule and label printing machine designed for professional electricians, panel builders, and wiring engineers. With a 300 dpi thermal transfer engine, fast 27.5mm/s print speed, auto half-cut function, and support for PVC/heat-shrink tubes up to 6.0mm, it ensures clean, durable and efficient wire marking. The backlit LCD display and large internal memory make it easy to operate in any environment.

    • 300 dpi thermal transfer printing for sharp and clear output
    • Supports PVC and heat-shrink tubes (2.5 mm to 6.0 mm)
    • Prints on labeling tapes (5 mm, 9 mm, 12 mm width)
    • Tube print length up to 20 m; tape up to 5 m
    • Multi-copy mode supports up to 100 m tube printing
    • Fast printing speed of 27.5 mm per second
    • Auto half-cut and manual full-cut tube cutting options
    • Backlit LCD display (64 × 160 pixels)
    • Internal memory stores up to 50 files (61,250 characters)
    • Lightweight and portable design
    		•
  • SpecificationDetails
    Print MethodThermal Transfer, 300 dpi
    Print Speed27.5 mm/s (Standard)
    Max Print LengthTube: 20m; Tape: 5m (100m in multi-copy)
    Tube Support$\mathbf{Ø}$ 2.5–6.0mm (PVC & Heat-shrink)
    Tape Widths5, 9, 12 mm
    CuttingAuto half-cut, manual full-cut
    DisplayLCD Backlit ($\mathbf{64 \times 160}$ px)
    Memory50 files (61,250 characters)
    Dimensions (W×D×H)295x293x94 mm
    Weight2.1 kg
  • Healthcare icon LM-550E Ferrule Printing Machine can be used in Health care Industry
    Retails icon LM-550E Ferrule Printing Machine can be used on Retail Stores
    Logistics icon LM-550E Ferrule Printing Machine Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses LM-550E Ferrule Printing Machine
    Government icon LM-550E Ferrule Printing Machine used in various Government Sectors
    Travel & Leisure icon LM-550E Ferrule Printing Machine for Travel & Leisure
    Special Materials icon LM-550E Ferrule Printing Machine for Special Materials
