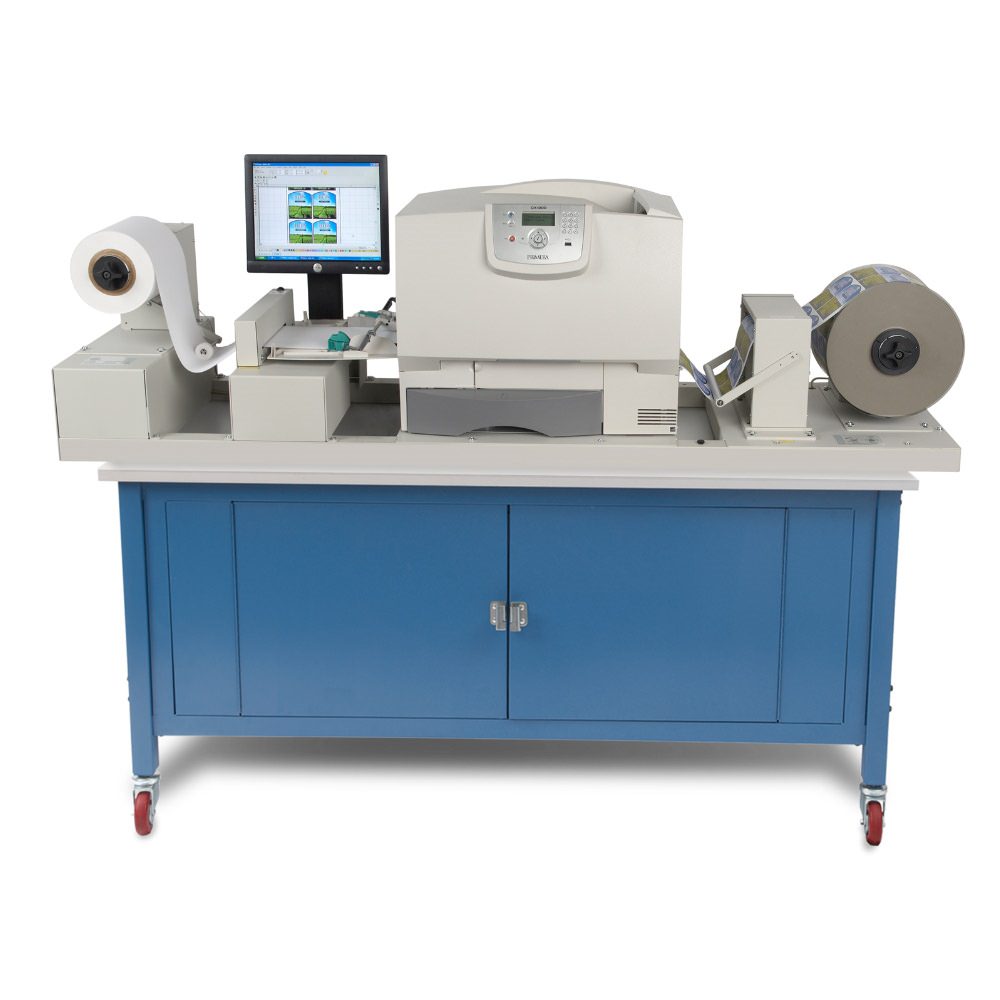

CX1200e Digital Color Label Press

Primera’s new CX1200e Digital Color Label Press delivers short-run, full-colour digital label printing at a breakthrough price. Digital full-colour label printing has a wealth of significant benefits. But until now, digital label presses have been an expensive investment in both time and money. The industry needed a simpler, more cost-effective solution

  • CX1200e utilizes one of the fastest and highest- resolution color laser engines available. With its incredible 1200 x 1200 dpi print resolution 4800 Color Quality (2400 x 600 dpi), the labels you produce will be as good as – or even better than – labels produced on digital presses costing hundreds of thousands of euro. Colors are bright and vibrant. Text is sharp. Bar codes and graphics are of the highest quality

  • Print Speed:

    83mm/second
    5 meters/minute

    Print Method:

    Color Laser with four separate laser engines (CMYK)

    Display:

    4-line, 160 x 64 pixel, backlit gray-scale display

    Printer Processor:

    800MHz / 133MHz / 256MB RAM (opt. 768MB)

    Media Width:

    216mm

    Print Width:

    Up to 203 mm

    Max. Print Length
    (Max. Label Length):

    Up to 610 mm (24”)

    Media Length:

    Up to 500 Meters per 305mm outer diameter roll of self-adhesive label stock (includes face sheet, adhesive and liner)

    Substrate Types:

    Self-adhesive label stock and laser approved films

    Printing quality modes:

    1200 dpi x 1200 dpi,
    4800 Color Quality (2400 x 600 dpi)

    Ink supplies:

    CMYK 4-color printing
    (Cyan, Magenta, Yellow, Black)
    16,500+ extra high yield cartridges (rated according to ISO/IEC 19798 guidelines, equals approx. 4950 meters according to ISO/IEC 19798)

    Software:

    PTPrint™ 9.0 RIP Software for Windows®,
    Pantone-approved color support
    Easy to use graphical user interface

    Input System:

    Input roll maximum outer diameter: 305mm (12”);
    Core inside diameter: 76mm (3”);
    IntelliTorque Tension control system with automatic paper feed
    Maximum input roll weight: 20.4 kg

    Output System:

    Output roll maximumouter diameter: 305mm (12”);
    Core inside diameter: 76mm (3”);
    IntelliTorque Tension control system
    Maximum output roll weight: 20 kg

    Operating System:

    Windows® 7/10 (32-64 bit)

    System Recommendations:

    Intel® Pentium®-based PC or compatible, 2 GHz processor or higher, 2 GB RAM or higher,
    50 GB or more free hard drive space, VGA video display of 1024x768 or higher,
    Available 100/1000 Ethernet port

    Dimensions:

    Without bench: 193cmW x 56cmH x 56cmD
    With bench: 193cmW x 144cmH x 76cmD

    Weight:

    Without bench: Approximately 116 kg
    With bench: Approximately 207 kg

    Operating Environment:

    Temperature: 20 to 23°C
    Humidity: 40 to 55% Relative Humidity,
    Altitude: 0 - 2000 Meters

    Power

    220-240 VAC, 50/60 Hz @ 3.5A

    Certifications:

    CSA, ICES Class A, BSMI Class A, VCCI Class A,
    FCC Class A, UL 60950-1, IEC 60320-1, CE Class A,
    CB IEC 60950-1, IEC 60825-1, GS (TÃœV), SEMKO, UL
    AR, CS, TÃœV Rh, C-tick mark Class A

    Warranty:

    One year parts and labor. Usage limitations may apply.

    Options:

    Extended warranty and on-site service agreements
    Matching bench with built-in lockable storage

  • Healthcare icon CX1200e Digital Color Label Press can be used in Health care Industry
    Retails icon CX1200e Digital Color Label Press can be used on Retail Stores
    Logistics icon CX1200e Digital Color Label Press Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses CX1200e Digital Color Label Press
    Government icon CX1200e Digital Color Label Press used in various Government Sectors
    Travel & Leisure icon CX1200e Digital Color Label Press for Travel & Leisure
    Special Materials icon CX1200e Digital Color Label Press for Special Materials
