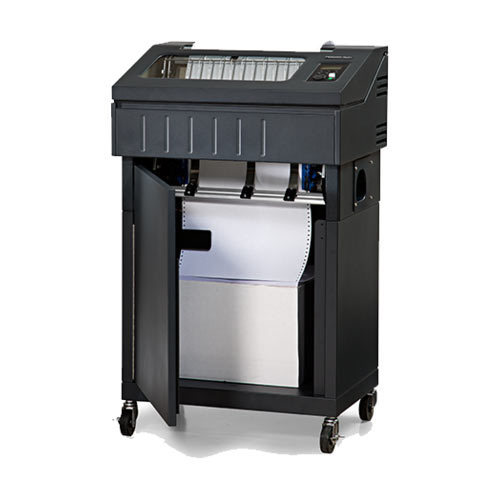

P8000H Cabinet
The P8000H Cartridge series delivers the most flexible design, adaptable functionality and manageable savings of any line matrix printer
    • Optional Rear Slide-Out Paper Drawer with ergonomic features, such as lifting handles that provide the user easier handling and better grip on full box loads
    • Optional Front Paper Access, which is ideal for supporting operations in confined spaces
    • Optional Expanded Doors to accommodate larger forms
    • Our quietest printer for environments where noise is a consideration
    • Print speeds:
      • P8000: 500 to 2,000 lines per minute
      • P8000H: 300 to 800 lines per minute

  • Connectivity/Interfaces:

    Standard: USB 2.0 and Serial RS-232

    Optional: Ethernet – 10/100 Base T Parallel – IEEE-1284 Centronics

    Graphics Resolution:

    180 dpi Horizontal, 180 dpi Vertical (max)

    Dot Size

    11.0 mil (.28 mm)

    Emulations:

    Standard: LQ1600K
    Optional: OKI (HANSI GB)

    Fonts:

    Letter Quality, Near Letter Quality, Normal, High Speed, Super High Speed, Ultra High Speed, SONG for Hanzi GB, MING for Big5

    Printer Drivers:

    AC input range 100-240 VAC, 50/60 HZ

    Power Consumption:

    Less than 5 watts

    Operating Temperature:

    Environmental Operating Temperature 50° to 104° F, 10° to 40° C

    Paper Type:

    ontinuous, fan folded, edge-perforation

    Print Width:

    13.6″ (345mm)

    Media LENGTH:

    3” (76mm) to 12” (305mm)

    Media THICKNESS:

    0.025” (0.64mm) max

    Media Width:

    3″(76mm) to 17″(432mm)

    Height:

    35.9” (911.8 mm) with basket
    35.9” (911.8 mm) without basket

    Width:

    25.8″ (655.3 mm) with basket
    25.8″ (655.3 mm) without basket

    Depth:

    29.1″ (739.1 mm) with basket
    19.1” (485.1 mm) without basket

    Printer Weight:

    115 lbs (52 Kg) with basket

    Shipping Printer Weight:

    160 lbs (73 Kg) with basket

  • Healthcare icon P8000H Cabinet can be used in Health care Industry
    Retails icon P8000H Cabinet can be used on Retail Stores
    Logistics icon P8000H Cabinet Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses P8000H Cabinet
    Government icon P8000H Cabinet used in various Government Sectors
    Travel & Leisure icon P8000H Cabinet for Travel & Leisure
    Special Materials icon P8000H Cabinet for Special Materials
