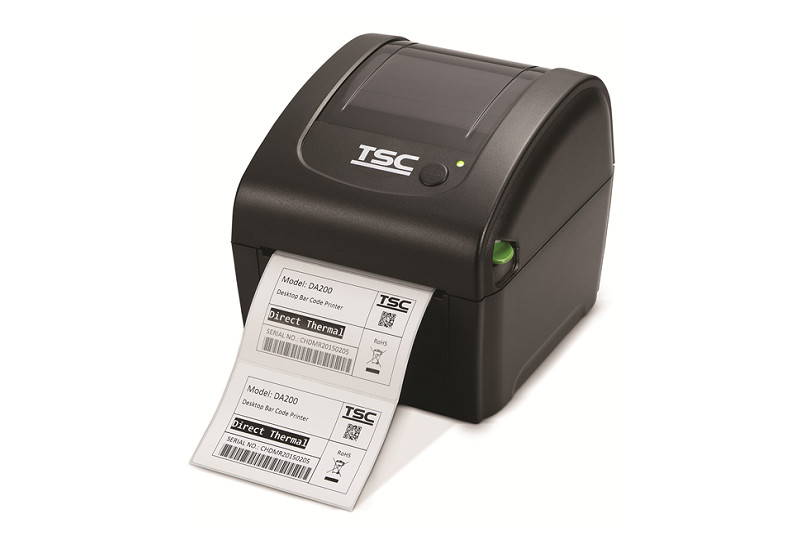

TSC DA220 Label Printer
The DA210/DA220 Series of direct thermal desktop printers are ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labeling and tag applications at the best price anywhere. The DA210/DA220 Series is a perfect combination of affordability with a durable and reliable design. With a cost that can't be beaten, the DA200 series offers both 203 and 300 dots per inch print resolution with printing speeds up to a fast 6 inches per second. The large 60-watt power supply produces high quality printed labels, even at its fastest print speeds. 4 Models Available The DA210/DA220 Series consists of 4 models designed to provide the right fit for your application. All four models handle up to 5" OD rolls of direct thermal labels and can print crisp, clear barcodes, graphics and text at up to 6 inches per second. Affordable The low-cost DA210 and DA310 models are priced right and have the features you need for most basic label printing needs using a USB 2.0 or optional Bluetooth interface. Wireless and Hardwire Communications Need more communications power? The DA220 and DA320 models have more memory and support every communications option you could need including Serial RS-232, Ethernet, USB host, internal 802.11 a/b/g/n wireless, or internal Bluetooth. Emulations and More The DA220/DA230 has plenty of memory with 128 MB Flash & 64 MB DRAM that can be used for easy storage of fonts, international character sets, and graphics, and it supports, "right out of the box," a fully compatible set of standard industry emulations, including Line Mode, Eltron®, Zebra®, and Datamax languages, making it easy to replace old installed hardware. Easy Loading For easy loading, the DA210/DA220 Series employs a user-friendly double-wall clamshell design with a large five-inch (outside diameter) center-biased media bay. The spring-loaded label roll holder makes loading simple. Top-of-form sensing – by the gap, black mark, or notch – is standard. The printer also comes with a head-open sensor. The printers are ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labeling and tag applications at the best price anywhere. Small Parcel Shipping Mail Room Address and Routing Labels Shipping & Receiving Entertainment and Transportation Ticketing Retail Point-of-Sale File-Folder Labeling
  • Print Specification 8 dots/mm (203 DPI) 152.4 mm (6")/second 108 mm (4.25") 25,400 mm (1000") Direct Thermal LCD/LED 1 LED (3 colors: green, amber & red) Memory 64 MB 128 MB N/A Ribbon & Media Capacity N/A N/A Continuous, black mark, fan-fold, notched (outside wound) 19 ~ 114 mm (0.7" ~ 4.5") 0.055 ~ 0.19 mm (2.16 ~ 7.48 mil) 25.4 ~ 38 mm (1" ~ 1.5") 10 ~ 25,400 mm (0.39" ~ 1000") 127 mm (5") OD Interface PCBA1: USB 2.0 high speed mode, USB Host, RS-232 and Ethernet PCBA2: USB 2.0 and Ethernet (factory option) • Internal 802.11 a/b/g/n wireless (factory option) • Internal Bluetooth (factory option) • External Bluetooth (user option) Software Support Oracle, WHQL 8.1, MFi, Windows, Linux, MAC X.10, Microsoft SQL Server, BarTender, Nice Label Physical characteristics 172 mm (W) x 165 mm (H) x 195 mm (D) 6.77" (W) x 6.50" (H) x 7.68" (D) 1.5 kg (3.31 lbs)
  • Healthcare icon TSC DA220 Label Printer can be used in Health care Industry
    Retails icon TSC DA220 Label Printer can be used on Retail Stores
    Logistics icon TSC DA220 Label Printer Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses TSC DA220 Label Printer
    Government icon TSC DA220 Label Printer used in various Government Sectors
    Travel & Leisure icon TSC DA220 Label Printer for Travel & Leisure
    Special Materials icon TSC DA220 Label Printer for Special Materials
