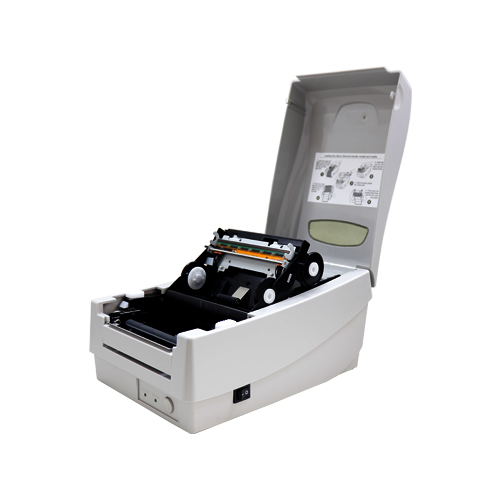

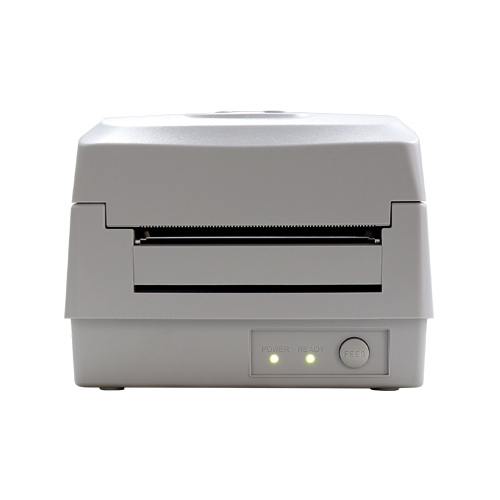

Argox OS 214NU Barcode Label Printer

The OS-214NU thermal transfer printer provides advanced functions and performance in a durable, space-saving design. A rapid print speed of 5 inches per second ensures increased efficiency and the large 4MB Flash and 8MB DRAM onboard memory handles a broad range of applications. The USB interface ensures compatibility with a variety of computers and other devices. Other improvements include much quieter printing compared with other printers in this class.

The printer’s durable, high-impact ABS housing and all-metal print mechanism assure years of dependable performance. The printer supports 1D/GS1 Data Bar, 2D/Composite codes and QR barcodes.

Style, ease-of-use, space-savings, price, and printing performance are what define the new OS-214NU thermal transfer printer.

  • Model: OS-214NU

    • Centronics Parallel, RS-232, USB and interfaces available.
    • Durable and easy maintenance: only 8 screws disassemble entire unit.
    • Snap-in thermal print head loads in 2 seconds.
    • Easy media loading & ribbon installation.
    • Detachable top cover for kiosk and other special applications.
    • PPLA,PPLB,PPLZ emulations available.
    • Support 1D/GS1 Data bar,2D/Composite codes and QR barcodes.
    • Full range of options: Cutter, stacker, memory card, RTC.
    • Ability to download 2-byte Asian fonts.

  •

     Printing Method

    Direct Thermal & Thermal Transfer

      Printing Resolution

    203 dpi(8 dots/mm)

      Printing Speed

    Max. 4 ips

      Printing Length

    Max. 100” (2540mm)

      Printing Width

    Max. 4.16”(105mm)

      Memory

    8MB SDRAM, 8MB Flash ROM

      CPU Type

    32 bit RISC microprocessor

      Sensors

    Reflective (Left side)

      Operation Interface

    LED Indicator x 2, Botton(Feed) x 1

      Communication Interface

    USB device, RS-232, Parallel

      Fonts

    Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily

      Wireless Security

    N/A

      1D Barcodes

    Code 39, UPC-A, UPC-E, Code 128 subset A/B/C, EAN-13, EAN-8, HBIC, Codabar, Plessey, UPC2, UPC5, Code 93, Postnet, UCC/EAN-128 UCC/EAN-128 K-MART, UCC/EAN-128 Random Weight, Telepen, FIM, Interleave 2 of 5 (Standard/with modulo 10 checksum/with human readable check digit/with modulo 10 checksum & shipping bearer bars), GS1 Data bar (RSS)

      2D Barcodes

    PPLA/PPLB:MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite codes

      Graphics

    PPLA: PCX, BMP, IMG and HEX format files PPLB: PCX and Binary raster, BMP and GDI

      Emulation

    PPLA, PPLB, PPLZ

      Software-label Editing

    Windows Driver (Windows XP/Vista/Win7/Win8/Win10), BarTender® from Seaguall Scientific

      Windows Compatibility

    N/A

      Software-utility

    Printer Utility, Font Utility

      Media Type

    Roll-feed, die-cut, continuous, fan-fold, ticket in Direct thermal paper

      Media

    Max. width 4.33”(110mm) Min. width 1” (25.4 mm) Thickness 0.0025”~0.01” (0.0635mm ~0.254mm) Max. roll capacity (OD): 4.3"(109 mm) Core size 0.5”(12.7mm) Max. roll capacity (OD): 4.3"(109 mm) Core size 1”(25.4mm) Optional Max. roll capacity (OD): 3.8"(96.5 mm) Core size 1.5”(38.1mm) Optional

      Ribbon

    Ribbon Width: 1”~4” Ribbon roll – Max. OD: 1.45”(37mm) Ribbon Length: Max. 92m Core size – ID: 0.5”(13mm) with notch Wax, Wax/Resin, Resin (Outside Ribbon)

      Drop Resistance

    N/A

      Printer Dimensions

    W 186mm x H 165mm x D 278mm

      Printer Weight

    2.0 kg

      Power Source

    Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A

      Battery

    N/A

      Operation Environment

    Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C)

      Real Time Clock

    N/A

      Standard Item

    N/A

      Optional Items

    Rotary Cutter, RTC Card, External media stand

      Agency Listing

    CE, FCC, cTUVus, CCC, RoHS

  • Healthcare icon Argox OS 214NU Barcode Label Printer can be used in Health care Industry
    Retails icon Argox OS 214NU Barcode Label Printer can be used on Retail Stores
    Logistics icon Argox OS 214NU Barcode Label Printer Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses Argox OS 214NU Barcode Label Printer
    Government icon Argox OS 214NU Barcode Label Printer used in various Government Sectors
    Travel & Leisure icon Argox OS 214NU Barcode Label Printer for Travel & Leisure
    Special Materials icon Argox OS 214NU Barcode Label Printer for Special Materials
