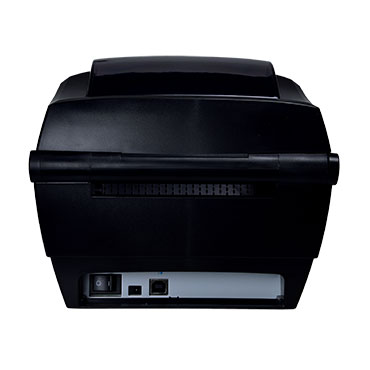

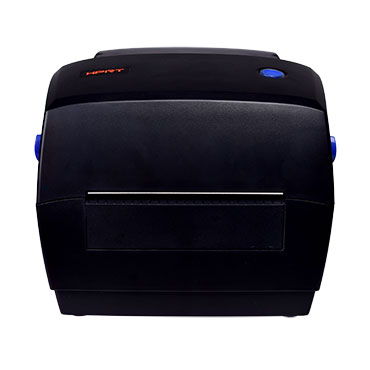

HPRtT LPG4 Label Printer

•  Thermal transfer technology

•  Big capacity of ribbon
•  Adjustable paper width
•  Low printing noise


  • •  Thermal transfer technology
    •  Big capacity of ribbon
    •  Adjustable paper width
    •  Low printing noise

  • ModelLPG4
    Printing MethodDirect Thermal / Thermal Transfer
    Resolution203 dpi?8 dots/mm?
    Printing Speed2 ips ~ 4 ips
    Printing Width25.4 mm ~ 108 mm
    Programming LanguageTSPL
    BarcodeLinear Barcodes

    CODE 39, CODE 93, CODE 128, EAN-8, EAN-13, ITF, I25, MSI, UPC-A, UPC-E, UCC/EAN-128

    2D BarcodesQR Code, PDF417
    Printing Length15 mm ~ 300 mm
    MediaTypeRoll-fed or fan-fed, die cut or continuous direct thermal labels with or without black mark, Continuous Label, Tag stock, Continuous Receipt Paper
    Diameter(Media Roll)127 mm
    Thickness0.003"(60 μm) ~ 0.007"(180 μm)
    Diameter(Core)0.5"(12.7 mm), 1"(25.4 mm), 1.5"(38.1 mm)
    RibbonTypeWax, Wax/Resin, Resin
    Length100 m
    Diameter(Core)0.5"(12.7 mm)
    SensorsGap SensorTransmissive (Fixed, Center)
    Black Mark SensorReflective (Adjustable, Full-Range)
    OtherHead-Up Sensor, Ribbon End Sensor, Paper Out Sensor
    InterfaceStandardUSB Type-B
    OptionSerial Port, Ethernet
    HICButtonFeed
    Indicator LightLED (Three colours)
    Power AdapterInputAC 100V ~ 240V, 50/60Hz
    OutputDC 12V, 2A
    ReliabilityTPH50 km
    MemoryRAM2 MB
    Flash2 MB
    SoftwaresDriverWindows Vista/ 7/ 8/ 10; Windows Server 2008/ Server 2012/ Server 2016
    Options and AccessoriesExternal 8-inch Label Roll Holder
    Physical Characteristics284.9 (L)×225.8 inches (W)× 170.9 (H) mm
    Empty Weight2.26 kg
  • Healthcare icon HPRtT LPG4 Label Printer can be used in Health care Industry
    Retails icon HPRtT LPG4 Label Printer can be used on Retail Stores
    Logistics icon HPRtT LPG4 Label Printer Mostly used in Logistics Industry for Asset Managemnet and Tracking
    Manufacturing icon Manufacturing Industry uses HPRtT LPG4 Label Printer
    Government icon HPRtT LPG4 Label Printer used in various Government Sectors
    Travel & Leisure icon HPRtT LPG4 Label Printer for Travel & Leisure
    Special Materials icon HPRtT LPG4 Label Printer for Special Materials
