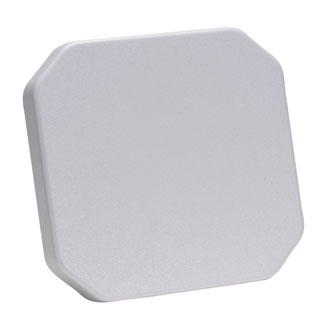

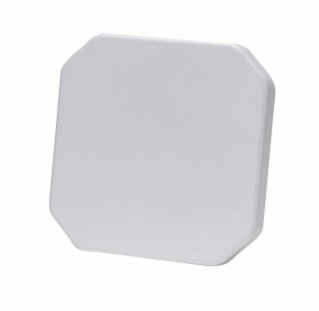

Zebra AN720 RFID ANTENNA
The AN720 RFID antennas offer all the features required for both indoor and outdoor environments
  • The AN720 RFID antennas offer all the features required for both indoor and outdoor environments. A perfect complement to Zebra'sFX7400 RFID Reader, the AN720 antennas are extremely compact, offering the aesthetics required for the most discreet installation in the most space constrained areas. The rugged AN720 is impact and vibration resistant, and designed to withstand exposure to rain, snow and extreme temperatures — ideal for the receiving dock doors or outdoor shopping areas.

  • Notices and Disclaimers

    See footnote1

    Performance Characteristics

    Nominal impedance
    50 Ohm

    Power
    10 watts (max. input)

    Front to back ratio
    8 db

    Frequency range2
    865-868 MHz, 902-928 MHz

    Gain
    3.0 dBi linear, 3.5 dBi linear

    Axial ratio
    2 dB

    Voltage Standing Wave Ratio (VSWR)
    1.5:1

    3dB beam width
    100°

    Physical Characteristics

    Connector
    Type "N" Female

    Polarization
    Circular (L) left

    Dimensions (with mounting screws)
    5.2 x 5.2 x 0.7 in. (132.8 x 132.8 x 18.1 mm) H x W x D

    Weight
    0.8 lbs (0.37 kg)

    User Environment

    Temperature shock test
    IEC-68-2-27

    Humidity test
    IEC-68-2-30 (77° to 104° F (-25° to 40° C)), 24 hour cycles of 90% relative humidity

    Environmental sealing
    IP67

    Outdoor use
    Yes

    Operating temperature
    -22° to +158° F (-30° to +70° C)

    Storage temperature
    -40° to +185° F (-40° to +85° C)
